How to turn a BLDC motor the easy way

  • 291 Views
  • Last Post 13 December 2023
baerndorfer posted this 12 December 2023

This is for everyone who wants to turn a BLDC motor without special controller.

Beside the motor you need 5 main components. Mosfet, Zener-Diode, HV/HF-Diode, 100W bulp and a Resistor. You will also need a DC-Source.

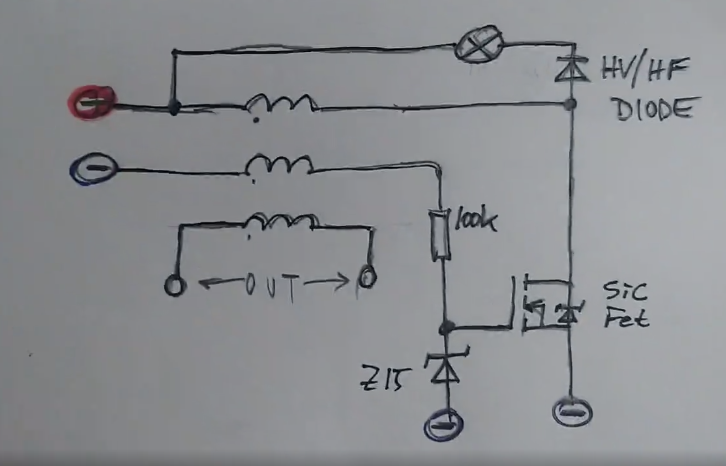

The circuit look like this...

To make this work you have to make sure, that the motor is not connected in Star or Delta configuration. We need independent windings.

Here is a short video where you can see the BLDC motor running with this circuit.

video URL: https://odysee.com/$/download/BLDC-Bedini/6651408372c98cca34376cee075161d360ca419c

greetings!

B

baerndorfer posted this 12 December 2023

This is for everyone who wants to turn a BLDC motor without special controller.

Beside the motor you need 5 main components. Mosfet, Zener-Diode, HV/HF-Diode, 100W bulp and a Resistor. You will also need a DC-Source.

The circuit look like this...

To make this work you have to make sure, that the motor is not connected in Star or Delta configuration. We need independent windings.

Here is a short video where you can see the BLDC motor running with this circuit.

video URL: https://odysee.com/$/download/BLDC-Bedini/6651408372c98cca34376cee075161d360ca419c

greetings!

B

Jagau posted this 13 December 2023

Hello Bearn

I think you'll really like this about BLDCs and , many other interesting BLDC circuit.

https://mbahtedjovoltage.blogspot.com/search?q=bldc

Jagau
