RIGOL MSO5000 hack

439 Views
Last Post 30 November 2023

baerndorfer posted this 22 September 2023 - Last Edited 12 September 2024

this is for everyone who wants to have full options on Rigol MSO5000 series...

1) download zip-file from this post.

2) extract and have a look at readme.txt

---
Update Rigol to Firmware 1.03.00.01
Data from Rigol Website: MSO5000(ARM)Update v00.01.03.00.01.rar (70,1 MB)
Extract DS5000Update.GEL (70,1 MB) and copy to USB-stick.
---
USB-stick (2GB FAT) - not every stick works for some reason...
---
On oscilloscope do a local update (USB).
Then reboot MSO5000
---
Delete content from USB-stick after flashing and copy 3 files on root of usb-stick.
01_03_00_01.bspatch (234 bytes)
DS5000Update.GEL (133,1 kB)
patch.txt (167 bytes)
---
Then do a local update on MSO5000 again.
follow instructions on screen.
restart, done!

16.10.2023: i just updated all scopes to new 1.03.03.00 firmware. you can find archive as attachment.

enjoy

mso5000 rigol

Attached Files

Liked by

27 Comments

Order By: Standard | Newest | Votes

baerndorfer posted this 22 September 2023 - Last Edited 12 September 2024

this is for everyone who wants to have full options on Rigol MSO5000 series...

1) download zip-file from this post.

2) extract and have a look at readme.txt

16.10.2023: i just updated all scopes to new 1.03.03.00 firmware. you can find archive as attachment.

enjoy

mso5000 rigol

Attached Files

Liked by

Jagau posted this 22 September 2023

Thank you B,

I will do this when I return around October 5.

THANKS

Jagau

Liked by

AlteredUnity posted this 23 September 2023

Hey Baerndorfer, I have the rigol ds1054z, it would be a cheap monthly cost to get the mso5074(if the hack still works with that), but do you feel like you get a lot more out of it than a norm scope?

Liked by

baerndorfer posted this 24 September 2023

when i buy hardware which is castrated in functionality by software, i have a problem with that.

Liked by

Jagau posted this 01 October 2023 - Last Edited 01 October 2023

The hack allows you to go from 70 MHZ to 350 MHZ

to have functional power analysis software

to have an MSO (Mixed signal) instead of a DSO

and 3 real-time shape analysis software

Protocol Analysis, Waveform Generator and Power Analysis

Do you think we will get more for the price of a 5074?

Bearn has the ideal scope for research

Jagau

Liked by

AlteredUnity posted this 03 October 2023

Yea I just looked at the details, I'll be ordering one this week probably. I didn't realize it's capabilities.

Liked by

Jagau posted this 03 October 2023

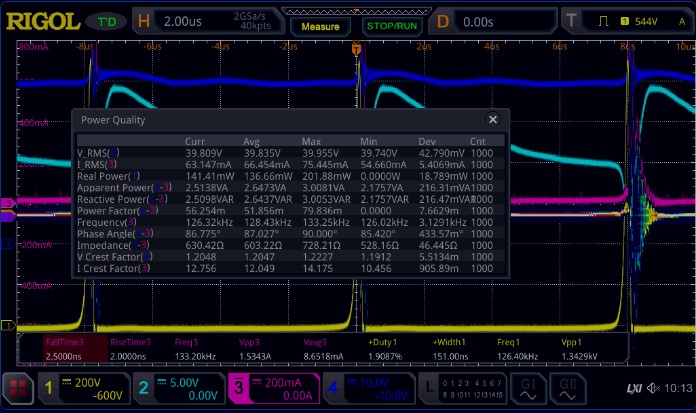

As an example look at one of the images that Bearn sent in a post recently wath can do the

Power analysis software

Real Power, Apparent power, Reactive power on same view, wow

This avoids a lot of calculations, everything is done in the software instantly, beautifully

On a 70 Mhz scope we have 5 ns rise time, 100 Mhz 3.5 ns

on a 350 Mhz 1 ns rise time , wonderfull.

They are to solve the software problem of vertical resolution at 12 bits

Jagau

Liked by

baerndorfer posted this 03 October 2023 - Last Edited 03 October 2023

in my opinion it is a very good scope. actually i have 4 of these and all are 'hacked' to perform better.

to be honest i've had problems with one scope since beginning. when i switch it off, it did not remember settings from channels and basic stuff. so i have to set some parameters which takes about one minute and then i'm ready to go. maybe there is a tiny battery somewhere that should be changed. who knows 😎

i use the scopes for at least 6 hours every day. all are connected to network and i use the HDMI-port to bring the display to a bigger screen.

i'm happy!

a last thing! it took me days to find a USB-stick, that works on this scope. the oldest one that i had works! a 2GB noname stick.

regards

Liked by

AlteredUnity posted this 10 October 2023

Thanks guys, I have a Rigol MSO5074 that should be here in a week, it just so happened that it became 20% cheaper($799) which made it even cheaper than the mso5072(technically the same scope). So im excited to try it out. Other than the ZPM(which isnt together at the moment), I wish I had more circuits setup to test this with. Maybe if I have time I'll pull some older circuits from the past to test it with 😁. Sorry for not posting anything too useful lately, 1hour/week just isn't enough time, especially trying to wind coils to do some SBC circuit test with information available on it.

Liked by

Jagau posted this 10 October 2023 - Last Edited 10 October 2023

Hi Bearn

Do you think the new ones with the last new firmware version v00.01.03.00.03

can the upgrade be done with what you provided??

Or it absolutely takes version V00.01.03.00.01

According to Rigol lower upgrade is not supported!

Jagau

Liked by

baerndorfer posted this 10 October 2023

i think it will not work. have not tried it with the newest firmware. think you should downgrade first to firmware from archive and then go on with the procedure.

regards

Liked by
