As some parts are still back order, I made a polyphase transformer like the Doc's with a potcore.
Instead of using an FG, I'm learning programming for the beautiful Aduino Uno R4 ,wich is the new one, it looks awesome and I'm going to activate the mosfets powered with this little marvel when I figure out C+ programming instead of an F.G.
For those familiar with Arduino IDE let me know.
This is the one i am talking about:
Jagau
Not crazy at all, but the most interesting use for AI. Thank you!
Jagau's project has just taken another leap of innovation and this has peaked my interest to experiment.
This forum is going in the right direction. It's not that there aren't enough energy generation circuits to utilize, but it's the amount of time spent in massaging/controlling the timing for the optimum output for many of them.
AI can also be used to tune for maximum gain/efficiency.

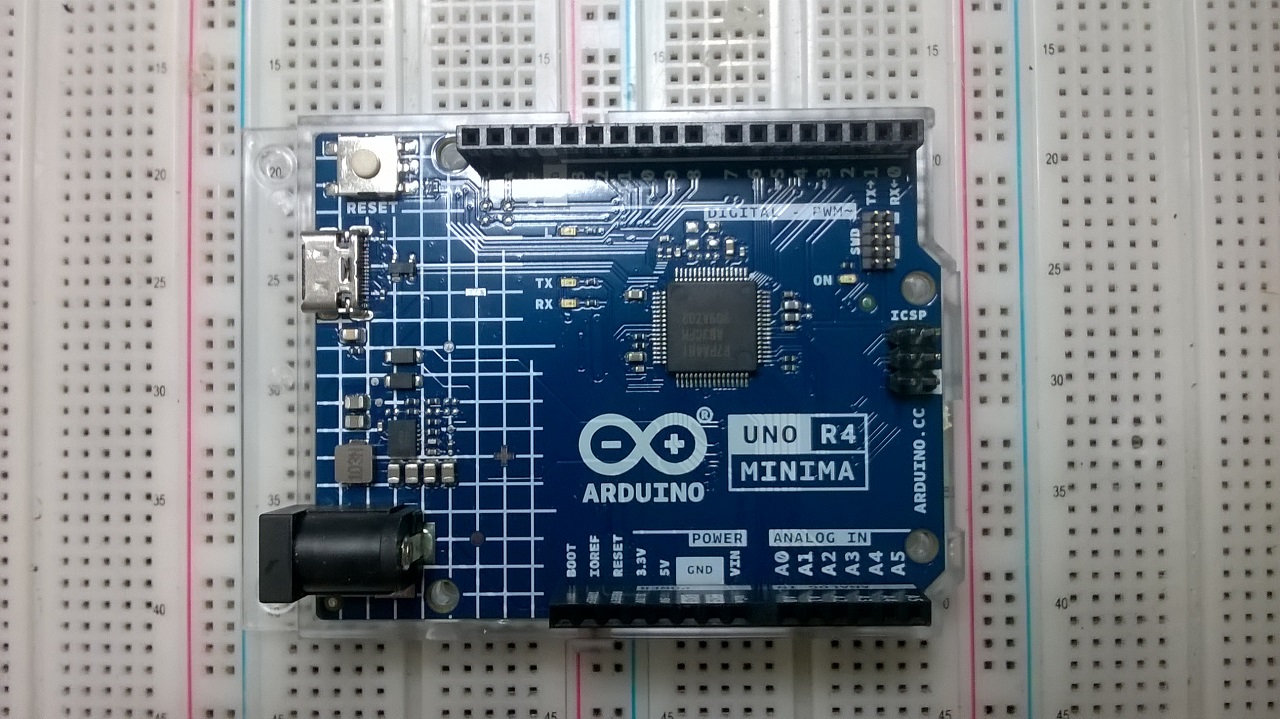

Finally I have just received my Aduino R4 minima

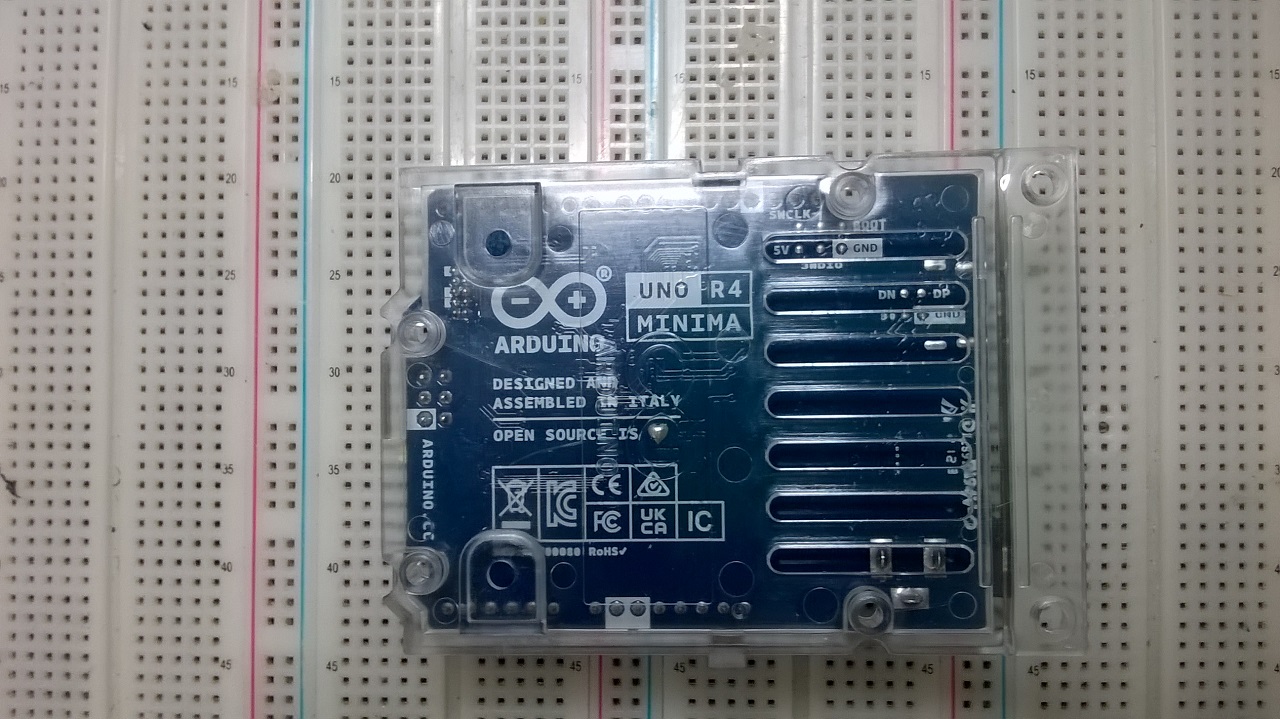

Inserted in a small plastic case on the back side.
and started experimenting in this new field.
Hi all
My very first Arduino experiences
With 500 hertz ready I change the duty cycle from almost 0 to 100%
A nice little beast easy to experiment with, just a bit of programming and a 10k pot.
Next will be a optoisolated mosfet driver with variable DTC and frequency.
Fighter, I would like to thank you for the ease with which you can insert videos, it's really easy and user-friendly, thank you, try it.
Jagau
Would there be another spot to connect a pot or rotary encoder too so when you adjust it the arduino(in the programming) will change the frequency?
Probably, I'm not good enough yet to give you the right answer but at first glance yes.
I am experimenting in this second part to make a square wave generator (0 to 60Khz) which will vary the frequency and the DTC and this with galvanic isolation (which is very important for my experiences) between the Arduino and the circuit in operation .
I have already designed with the 6n136 optoisolator (very fast in transfer ratio) and which serves as a mosfet driver, only the frequency variation has to be done.
On the Arduino site there is a wealth of data that everyone around the world shares. Lots of fun doing these programming trials.
Jagau
Hello everyone.
Jagau sorry I can't help you with programming
of your Arduino, I do not have the IDE installed because I do not have
no Arduino, if I have programmed Atmel MCUs
in Asambler years ago.
Anyway if you get stuck with something let me know.
Thanks.
YoElMiCrO.
i recommend, that you use Arduino PWM Frequency library - https://code.google.com/archive/p/arduino-pwm-frequency-library/
with this lib you can have any frequency that you want. you are not restricted to the ones, the arduino gave you.
regars!
B
Thank you for your help Yoelmicro and Berndorfer
I appreciate it
Jagau
Quoting:Jagau
My very first Arduino experiences
With 500 hertz ready I change the duty cycle from almost 0 to 100%
A nice little beast easy to experiment with, just a bit of programming and a 10k pot.Next will be a optoisolated mosfet driver with variable DTC and frequency.
Very nice, Jagau !
You familiarized with it extremely fast, enjoy the development ! 🙂
Fighter, I would like to thank you for the ease with which you can insert videos, it's really easy and user-friendly, thank you, try it.
Absolutely, you're welcome !
We built our new home here to offer the best tools and intuitive user interface to our members.
When anyone want to share a video showing interesting experiments and results, don't hesitate to upload it, that's why we built this platform: to facilitate the exchange of ideas, information and results in any possible way - discussions, schemas, images, videos and documents.
Fighter
| "If you want to find the secrets of the universe, think in terms of energy, frequency and vibration." | ||
| Nikola Tesla | ||
Another great advantage of using Arduino Like FG, is the sending of programmed pulses inside another pulse with different frequencies and DTCs and in the same time period. Really interesting.

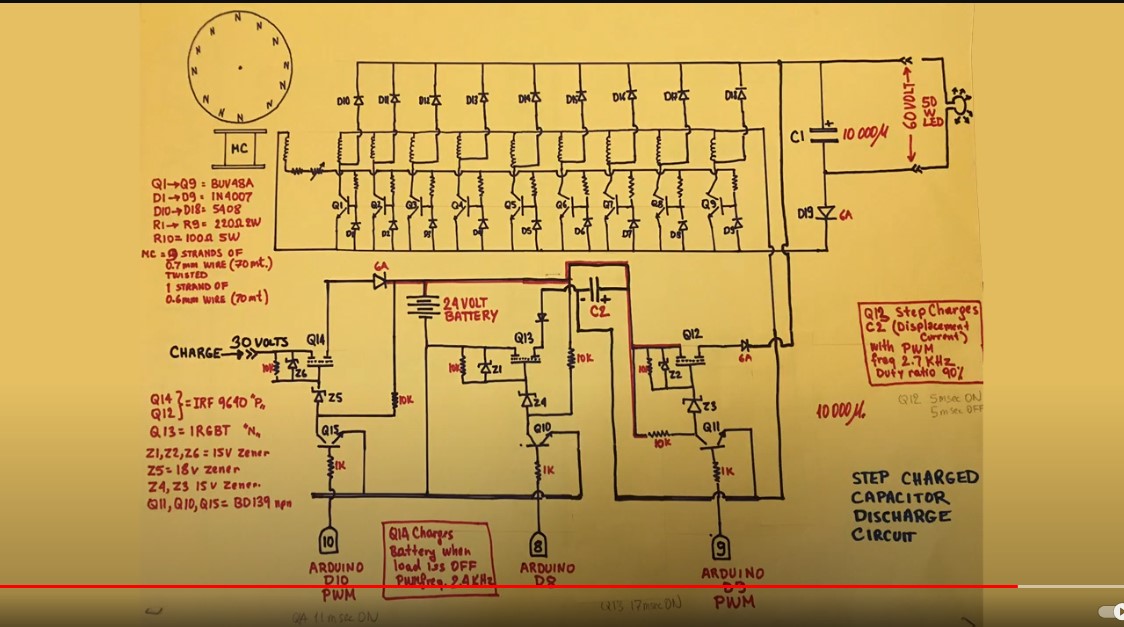

A practical example of this, designed by Tanju Argun Eng. with 3 different set up in the same period
Jagau
