PARALLEL PATH MAGNETIC TECHNOLOGY (PPMT)

  • 96 Views
  • Last Post 14 hours ago
Jagau posted this yesterday

While waiting for parts for another project, today I’m going to talk to you about another fascinating subject:

PARALLEL PATH MAGNETIC TECHNOLOGY

How it work|

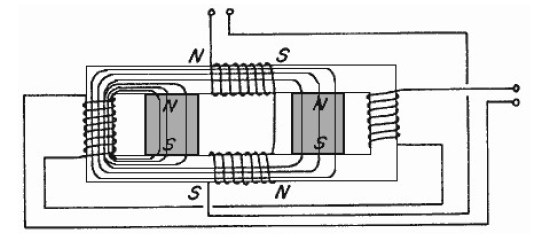

When the coils are at rest, we have this configuration with the two magnets and their flux as shown in the drawing, only the magnets flux hold the ends.

Thus, a single unit of force is generated on each side with flux of each magnet, as demonstrated by C. Flynn in his research.

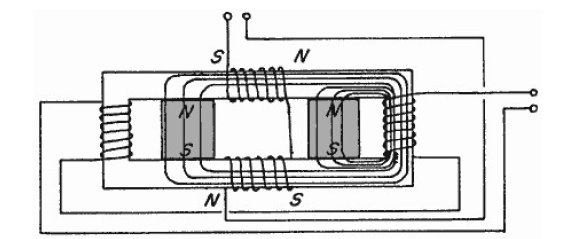

If the coils are activated by alternating positive and negative polarity, it is proven that four units of force are generated alternately on each side, like this:

The flux from the right magnet contributes to increasing the force on the left one alternately by a factor of four to 1



So, is it possible to create a sort of generator by placing coils at the ends and achieve a 4-to-1 ratio?

That is the subject of an upcoming project currently on hold.

jagau







What we consider to be empty space is merely a manifestation of unawakened matter. N.T.

Attached Files

Jagau posted this yesterday

While waiting for parts for another project, today I’m going to talk to you about another fascinating subject:

PARALLEL PATH MAGNETIC TECHNOLOGY

How it work|

When the coils are at rest, we have this configuration with the two magnets and their flux as shown in the drawing, only the magnets flux hold the ends.

Thus, a single unit of force is generated on each side with flux of each magnet, as demonstrated by C. Flynn in his research.



If the coils are activated by alternating positive and negative polarity, it is proven that four units of force are generated alternately on each side, like this:

The flux from the right magnet contributes to increasing the force on the left one alternately by a factor of four to 1



So, is it possible to create a sort of generator by placing coils at the ends and achieve a 4-to-1 ratio?

That is the subject of an upcoming project currently on hold.

jagau







What we consider to be empty space is merely a manifestation of unawakened matter. N.T.

Attached Files

Jagau posted this 14 hours ago

So the project involves construction of a power conversion device to utilize the ability to redistribute the magnetic field lines to generate electricity. If the lines of force can be moved from one armature to another using a small input current then it may be possible to wrap the armatures in coils to pick up this change of flux as electrical energy.

Research circuit:

For left side



for right side

And, of course, an H-bridge to make polarity reversal easy.

It is the transfer of magnetic flux that will generate the output. A research project within everyone's reach.

Jagau

What we consider to be empty space is merely a manifestation of unawakened matter. N.T.
