Resonance energy and Don Smith Proof of Concept

428 Views
Last Post yesterday

Jagau posted this 2 weeks ago

To avoid overloading Fughter's thread, I've created another thread on the Don Smith system.

The first experiment will be to verify, with two 60-turn 2.25-inch PVC coils, what one reel can transmit to the other without a transformer effect, using different coil placements like the one he gave as an example often described in his books. Just a transmitter and a receiver coil.

I will build these two coils and will do a practical demonstration.

The text of this experiment we find in D.S book:

Jagau

What we consider to be empty space is merely a manifestation of unawakened matter. N.T.

Liked by
and 3 others

7 Comments

Order By: Standard | Newest | Votes

Jagau posted this 2 weeks ago

To avoid overloading Fughter's thread, I've created another thread on the Don Smith system.

I will build these two coils and will do a practical demonstration.

The text of this experiment we find in D.S book:

Jagau

What we consider to be empty space is merely a manifestation of unawakened matter. N.T.

Liked by
and 3 others

Jagau posted this 2 weeks ago

The goal of this very simple basic experiment is to demonstrate two important concepts:

A. Energy generation.

B. The almost limitless recovery of this magnetic free energy.

That's what we're trying to do here in all energy forums.

Jagau

What we consider to be empty space is merely a manifestation of unawakened matter. N.T.

Liked by

Jagau posted this 6 days ago

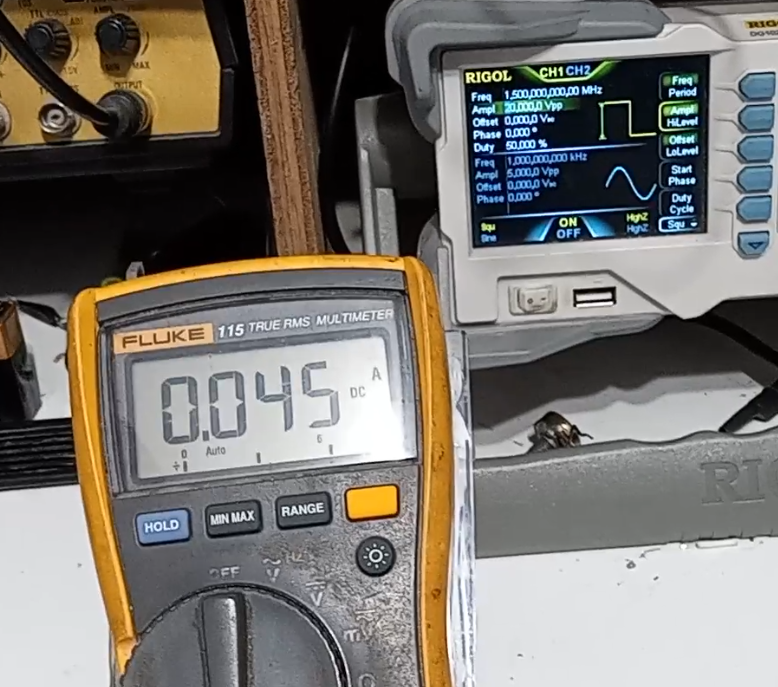

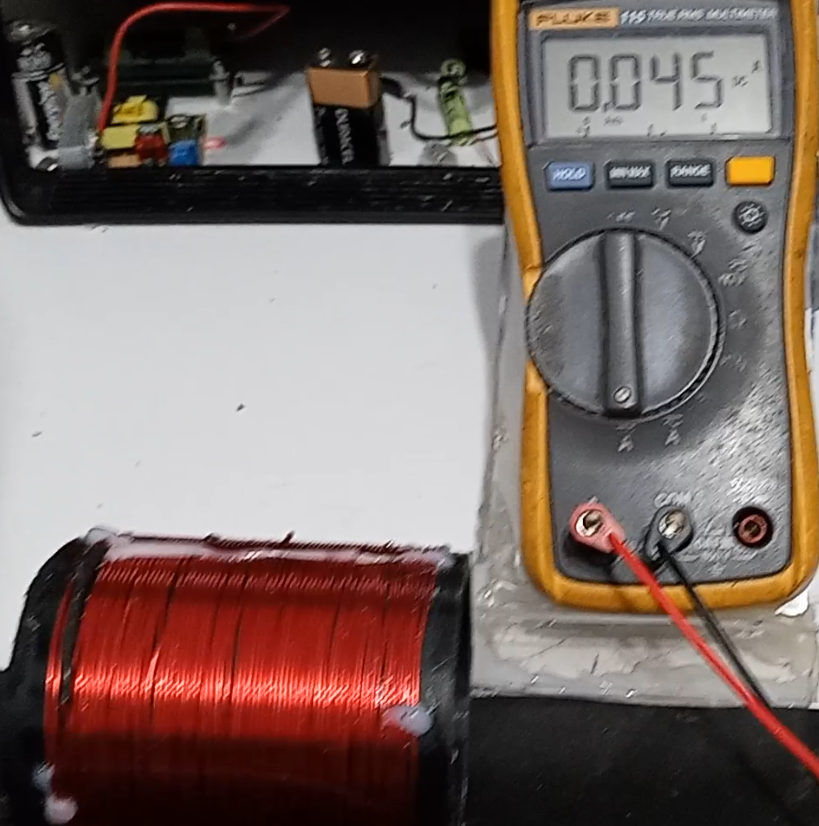

The main coil with 60 turns of recovered copper, powered by a pulsed MOSFET at 1.5 megahertz, requires 44-45 mA at 12 VDC.

With a second coil connected to an LED, a magnetic flux is generated and powers the LED.

A. We have here energy generation.

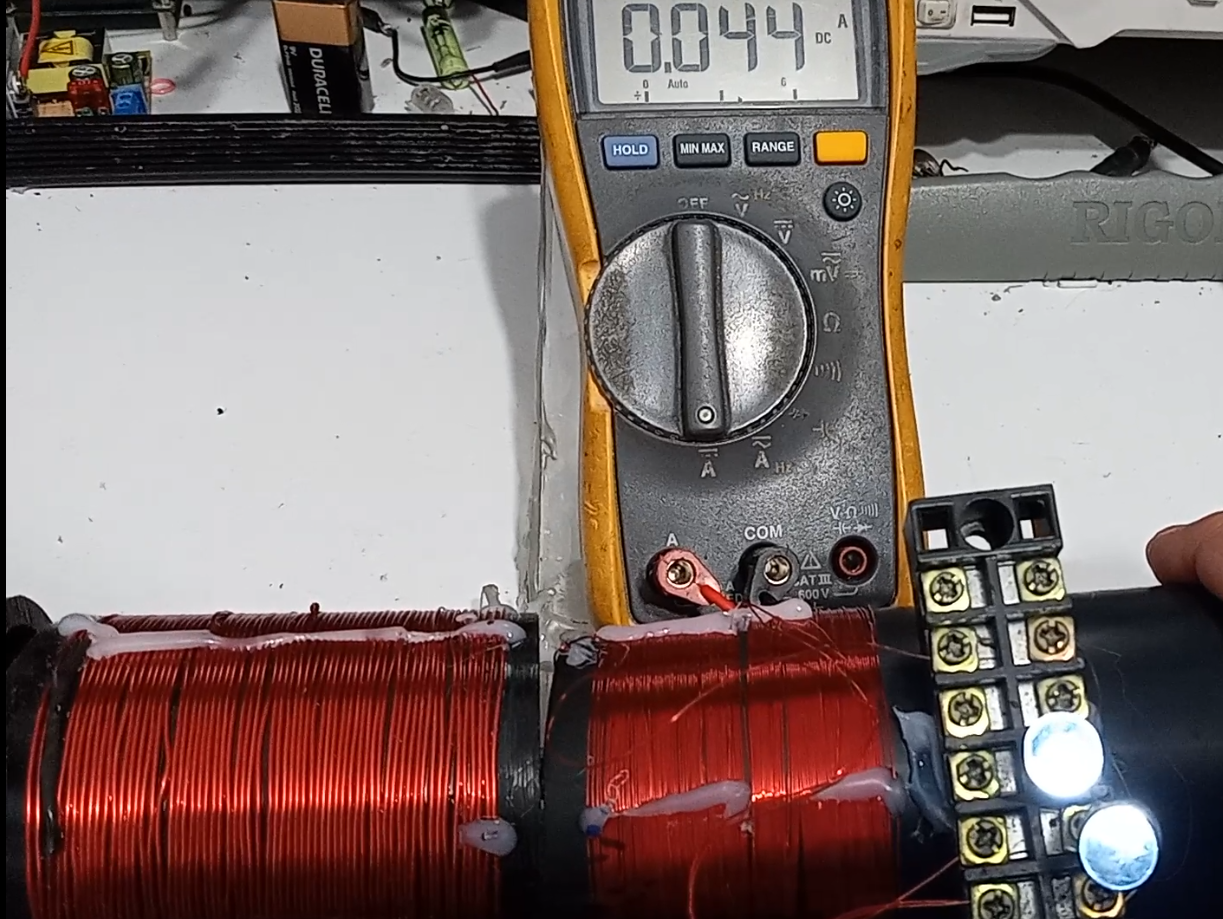

With the addition of two more coils, for a total of three, the current consumption remains at 44-45 mA.

We therefore have energy generated in the form of magnetic flux, and even with 3 LEDs, the input power consumption remains the same.

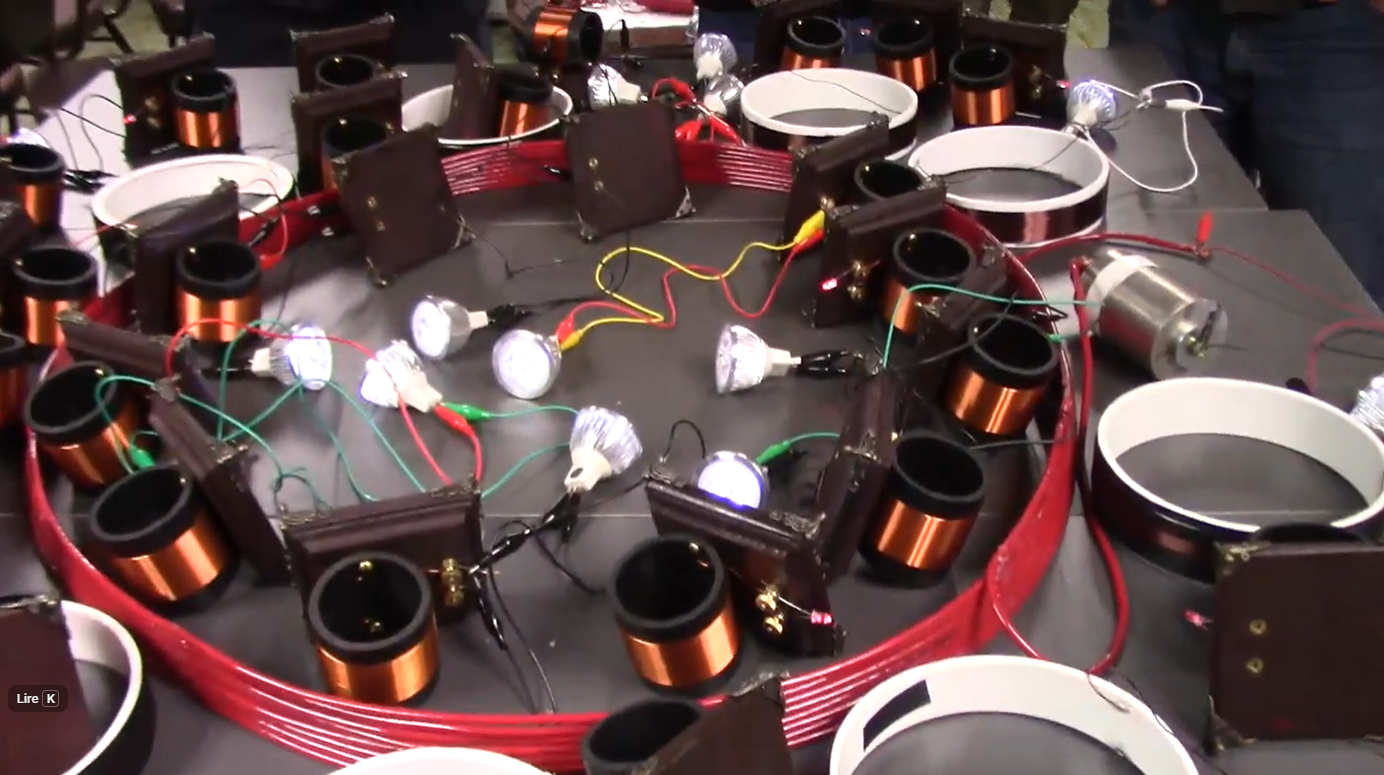

We could add dozens more, as in R. Friedriech's image, and the power consumption would still not change.

Thus D.S. wanted to demonstrate to us by this demonstration that magnetic flux can be used without affecting the input, the higher the flux, the greater the return. Input below 1 watt to power everything you see around.

B. The almost limitless recovery of this magnetic free energy.

Jagau

What we consider to be empty space is merely a manifestation of unawakened matter. N.T.

Liked by
and 1 others

Inception posted this 6 days ago

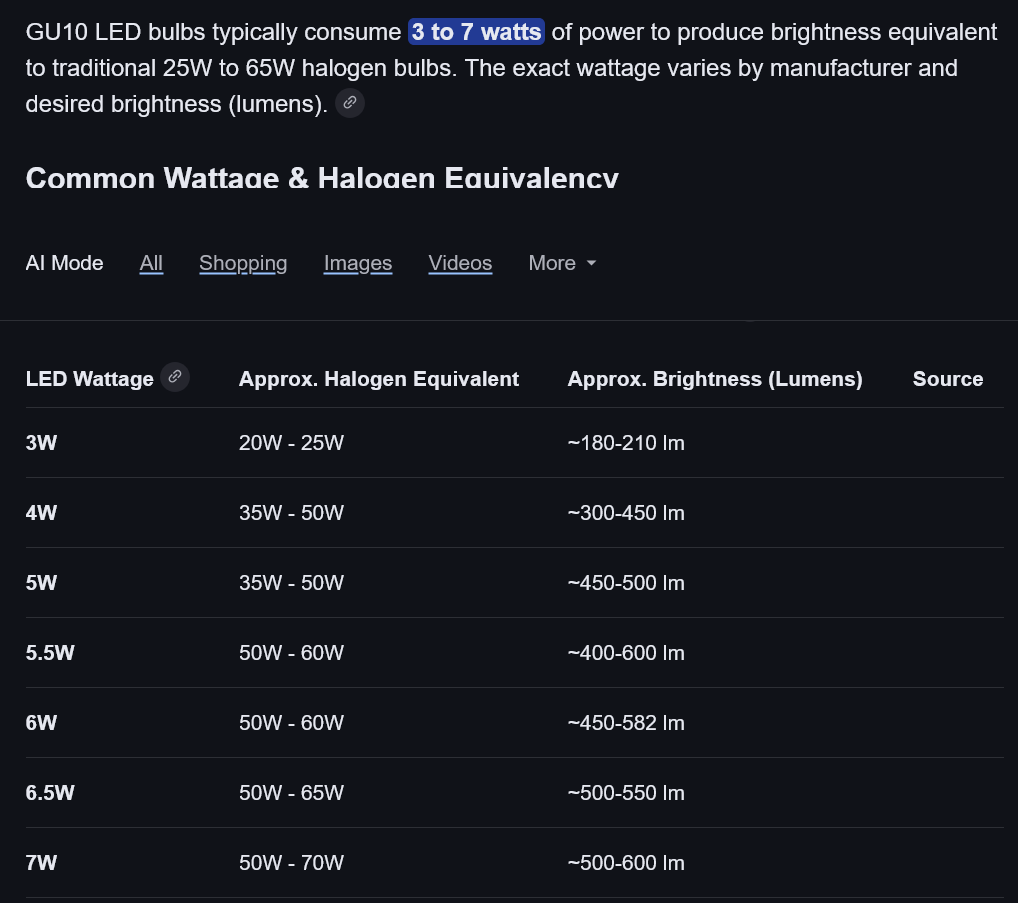

1 Watt Primary energizes multiple 3 to 7 watt LEDs.

It appears that 7 gu10 m16 bulbs are energized in this video.

For 1 Watt of input to the resonant Primary, the effective output is a minimum of 21 watts.

Tesla deployed similar devices for theater lighting.

This should be the first large-scale humanitarian project, to light the homes and work facilities of the masses.

Follow that with heating and cooling systems.

Inception

Liked by

Jagau posted this 6 days ago

Well said, Inception.

For those who don't think it's possible, just study this evidence.

What D.S. says:

Disrupt the environment to get voltage (extreme magnetic flux) and draw (pump) the available amps through a controlled ground you gain power for your devices.

The secret lies in Tesla coil and the way in which they are geometrically assembled.

Jagau

What we consider to be empty space is merely a manifestation of unawakened matter. N.T.

Liked by

Jagau posted this 5 days ago

The high-frequency air core has higher gain due to resonance and HF frequency.

The goal is to create high potential on the input side between ambient and ground.

Experimental consideration:

I wonder if, given that we can multiply these identical coils in the transmitter (set of Tx-Rx), we could create a repeater coil that would be in phase with the first set of TX-RX coils?
In this way, we would only use the repeater coil to power our devices without affecting the input?

I believe this would be the experiment to conduct to move this project forward!

Jagau

What we consider to be empty space is merely a manifestation of unawakened matter. N.T.

Liked by

Jagau posted this 5 days ago

D.S claims:

It might be speculated that if a device is being driven with sharp pulses which have a very sharply rising leading edge, that the effective frequency of the pulsing is actually determined by the speed of that rising edge, rather than the rate at which the pulses are actually generated.

For example, if pulses are being generated at, say, 50 kHz but the pulses have a leading edge which would be suited to a 200 kHz pulse train, then the device might well see the signal as a 200 kHz signal with a 25% Mark/Space ratio, the very suddenness of the applied voltage having a magnetic shocking effect equivalent to a 200 kHz pulse train.

I have already been experimenting with these claims for some time. The most difficult part is finding the rest time between pulse trains.

Jagau

What we consider to be empty space is merely a manifestation of unawakened matter. N.T.

Liked by

Jagau posted this yesterday

Here is a very important little reminder already presented in another thread

To have better resuts in this experiment, the coils must segmented one on top of each other., joined in opposite phase at the center.

The segmentation was the key to releasing the action. Pure voltage was rising with each inch of coil surface. Tesla constantly referred to his "electrostatic induction laws", a principle which few understood.

Tesla Transformers are not magnetoelectric devices, they use radiant shockwaves they produce pure voltage without current.

If we add other coils without connection between the impulse coil and the final coil, the coil with the highest voltage will produce an even greater voltage and will be the one furthest away, which I have observed and experimented with.

Jagau

What we consider to be empty space is merely a manifestation of unawakened matter. N.T.

Liked by
and 1 others
