Hi,

see what you mean ,so the in and out windings are isolated from each other, it is the principle of an isolation transformer, there can be no loop in the input and the output.

One of the cases where we can have a ground loop is when we place two measuring devices with the same common ground (earth ground) as an example a generator at the input and an oscilloscope at the output having a common mass.

In the video I plugged in the oscilloscope to show the waveforms. The same results are even after removing it and the same when I run it entirely on battery with a TL494 oscillator powered by a 12volts DC battery.

I use a battery powered DDM on the output for the voltage measurement and you will see it after the holidays the system works entirely on 12 volts battery so no ground return.

There is no power supply or battery in my circuit which provides voltage.
The Function generator has a maximum output power of 0.5watt and at this frequency 0.1 watt then the surplus come from where?

it comes from the current without mass which is converted by the capacitor into coulomb and which can be transformed back into current with mass, as Tom Bearden explains very well in his technical documents.

For the other experience you will see it is incredible to see all the energy that surrounds us.

have a nice day
Jagau

Liked by

Admin

Fighter posted this 15 December 2023

Hello,

As I promised to Jagau the import of this thread is now complete.

It has 92 posts and for each it needed direct access to our database, image importing, links, text formatting and a lot of attention to details.

As this process cannot be automated, it can be done only manually and it's very time consuming.

But it's worth the effort, in time we gonna get all our data here to home where it belongs because it's the work and the property of the members of our team.

There are still two of Jagau's threads pending to be imported and I'll do that soon as I'll find time.

Jagau requested here for his threads to be removed from the old aboveunity site but of course that cuckoo-boy from the old site can't do that because without the work done and shared there by our team he would have nothing on his site. 😉

As Jagau's device shared in this thread is overunity it's now officially tagged with the "Beyond-Unity" tag and I will add it to the section "Our Beyond-Unity Devices" on the right-side of our site.

Jagau, if you find any (possible) errors I've made during the import please feel free to edit/correct them.

The thread is officially yours now.

Regards,

Fighter

"If you want to find the secrets of the universe, think in terms of energy, frequency and vibration."
		Nikola Tesla

Liked by

Jagau posted this 15 December 2023

Thank you Fighter, it’s very appreciated.

For those who want to ask relevant questions to this thread,

I am here to answer you here on Beyoundunity.org only

Jagau

Liked by

Jagau posted this 17 December 2023

Avramenko plug work very well too in this configuration

with only one connection to the single output coil.

You could reach near 500 Volts usingAC square wave.

At resonance when the two counter magnetic fielld slap together a huge voltage increase occur.

Jagau

Liked by

Jagau posted this 11 January 2024

I don't know if anyone has managed to reach the level of resonance as I described on this subject, yet the result is there.
Maybe a little sharing would be interesting to see.

Jagau

Liked by

AlteredUnity posted this 12 January 2024

Replying To: Jagau

Hey Jagau. The information you shared here is very valuable, I don't have a pot core, though I do have plenty ferrite ones available which when time permits I will try to your setup.

Also like I've said i wanted to try to implement, is running a load off the negative side of the capacitor with the avramenko plug, i believe the capacitor will still charge while doing so.

Liked by

Jagau posted this 13 January 2024

Hello Alter
Yes, it’s a great experience to have.
I'm going to do another little demo on resonance with this circuit and with my new equipment.

Jagau

Liked by

Jagau posted this 13 January 2024 - Last Edited 13 January 2024

In an arrangement of three coils placed in a potcore, when the first two coils in phase opposition are pulsed at resonance and you harvest on the third coil, you will get much more than 50 times what you gave at the input.

When the magnetic fields of the two coils collide a new phenomenon appears.

A demo will follow
Jagau

Liked by
and 3 others

Jagau posted this 15 January 2024

A video here on the subject discussed above.

The resonance is obtained with an AC square wave, which varies from + to -, with a frequency of 33Khz.

When the wave collected on the third coil is at its maximum amplitude, the voltage with only 222 milliwatts ( 1 / 4 of a watt ) and 4 volts at the input gives us 480 volts RMS DC at output. Please note that on the third coil, the AV plug is only connected to one side of the coil. If you charge a capacitor directly on the AV plug you will get more power at dischage in time related.

The apparent power is V rms X I rms

average power is V rms X I rms X cos phi, the power analysis software does it for us in real time.

Power analyser give us informationin in real time, with a lot of other information like impedance, a really nice tool.

If you short with a jumper the AV plug output, this has no effect on the input power. Thi is best way to hack resonance without affect it.

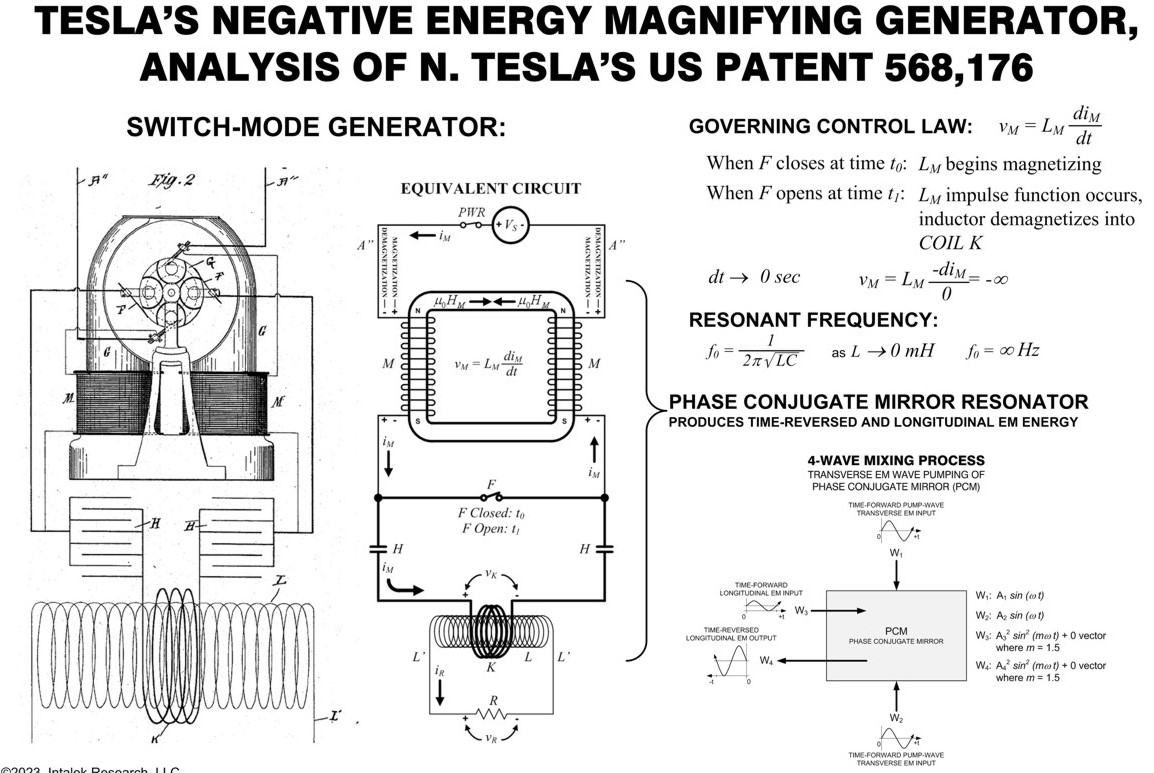

In fact there is nothing new here about pulsing two coils in opposition of phase and harvest on a third, Nicolas Tesla was already doing it in 1896, an explanatory photo of Tesla's patent 568176 coming from the site Intalek.com

Jagau

Liked by
and 2 others

Jagau posted this 15 January 2024

I was told that on another site, that this is not good, which I shared and demonstrated on my last post, namely that you can pulse two coils and harvest from a third.

To this person I answer, can you do the same?

My demonstration is clear, easy to understand and with supporting technical proof.

Don't make the mistake of pulsing on one coil and harvesting on the other two, that's what this person teaches, you'll be wasting your time, that's not the right way. Besides, have you seen one of its real creations with a single pulsed coil, I demonstrated that this is not the right way? Just talking is not enough, there are plenty of websites like that with just blah blah and no experiences produced.

Tesla and Don Smith and Steven Mark demonstrated that pulse on two and harvest on one was the correct method. Tell me why does he speak ill of me, through my real demonstrations?

I understand that real researchers don't come to research sites because of the lack of respect from these people. Be respectful on search sites, you will save time and knowledge.

The demonstration was done in complete honesty and without ulterior motive with the sole aim of sharing what I found.

Stop talking nonsense to your members, it's not good. I believe that everyone is capable of making a serious judgment and reading between the lines. It is true that the truth shocks.
