Beyond Unity - Non Linear Resonance

Jagau posted this 14 December 2023

I transferred my thread on Non Linear Resonance here to BeyondUnity.org

beyond-unity nonlinear resonance

Liked by

Jagau posted this 07 August 2020

update

In the same setup, when I add a fourth coil and a second 7 uf capacitor I get 350 volts in each capacitor so 700 volts total and this without increasing the load at the input.

So a non-inductive coil does not affect the input only the magetic part is transmitted.
I think that's what Don Smith meant by only dealing with the magnetic side and not the electric side.
In study
Jagau

Liked by

Jagau posted this 07 August 2020

I had a great idea at the moment.

over onto the counter part of the magnetic side none of those laws apply and it's a whole different system and most of the critical information they're missing intentionally so what in effect what you have on the magnetic side you can make as many copies of it as you want without depleting the source

I am going to try something to finally prove to me that a non-inductive coil is like a transmitter and that the receivers do not affect the input.
in experimentation, thank you
Jagau

Liked by

Jagau posted this 17 October 2020

Hi Yo

Excuse me Yo I had misjudged your oscilloscope image. You have probably noticed that even if you short the output it does not affect the input at all.

Jagau

Liked by

Jagau posted this 24 October 2020

Update

Hi all
The project is ahead more than I hoped, in another post I gave you a voltage of 700 volts, I now managed to get near 1 Kv, a lot more power always with the same setup at the input, so even more power.

Still have other great ideas for more powerful development. Slowly but surely.

More than unity is possible, I tell you.

jagau

Liked by

YoElMiCrO posted this 24 October 2020

Hi everyone.

@Jagau.
Do you know what is the material of the Pot Core you use?
I have done many experiments in these last days,
I think I finally know what is the mechanism involved.
But still not 100% for not being in any textbook.

Thanks in advance.

YoElMiCrO.

Liked by

Jagau posted this 24 October 2020

Hi yo

I bought them from Ebay some time ago.
These are GU42 core ferrites with AL 6000 is what interested me at the time.
As you know it with a high inductance factor like this one can have effects more quickly with very little winding.
The books do not tell the whole story, the proof of this in my other thread on, ferrite core at work, I had never observed such a waveform. When you reach this stage you are in another world which is even more surprising is that the oscillator does not work like a normal oscillator.

Jagau

Liked by

Atti posted this 24 October 2020

Hi.

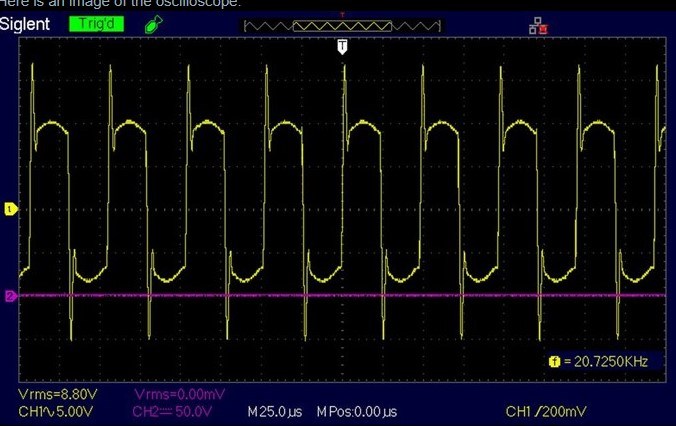

I don't know what it's about. But somewhere in my work, I’ve come across this wave shape somewhere.

Atti.

Liked by

Jagau posted this 24 October 2020

Hi Atti

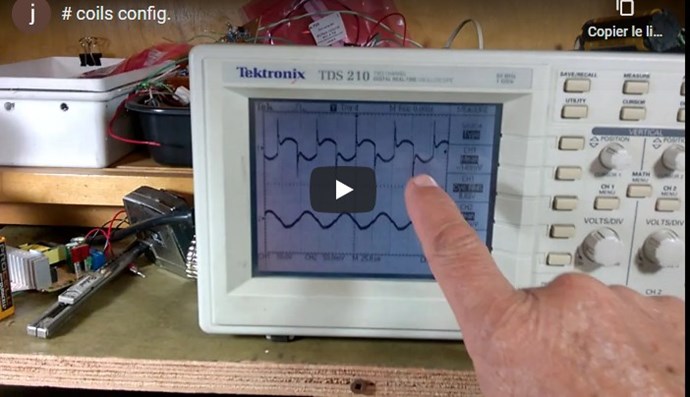

A peculiarity of this waveform if we look closely gives us a good idea of the concept that I have already discussed in one of my youtube video.

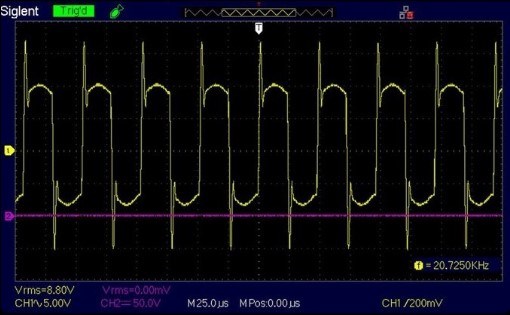

Take a good look to the AC square wave waveform with the cursor right in the center that separates the two polarities. In addition, what is very interesting, the small peaks at the start of each pulse exceed the average of the waveform, which indicates to us that the ferroresonance is taking place.
This is an excellent result Yo.

Atti if if you have already had this waveform you are on the right track

Jagau

Liked by

Atti posted this 25 October 2020

Hi Jagau.

In addition, what is very interesting, the small peaks at the start of each pulse exceed the average of the waveform, which indicates to us that the ferroresonance is taking place.
Atti if if you have already had this waveform you are on the right track

That's exactly what I thought. I observed this peak above the signal during a measurement. I don't know exactly which layout it was anymore, but I'll find it. If I have it, I'll show you. Thanks for the reply.

Atti.

Liked by

Jagau posted this 01 November 2020

I had a great idea at the moment.

over onto the counter part of the magnetic side none of those laws apply and it's a whole different system and most of the critical information they're missing intentionally so what in effect what you have on the magnetic side you can make as many copies of it as you want without depleting the source

I am going to try something to finally prove to me that a non-inductive coil is like a transmitter and that the receivers do not affect the input.
in experimentation, thank you
Jagau

Hi all
the experiences happen very quickly and successfully
as I succeeded in duplicating the magnetic side, I can easily
duplicate and even more as don smith predicted.
Am in experimentation to check this early and will keep you posted on the results soon
Jagau
