Jagau posted this 14 December 2023

I transferred my thread on Non Linear Resonance here to BeyondUnity.org

beyond-unity nonlinear resonance

Liked by

Jagau posted this 20 May 2024

Hi Vidura

When I send only the positive part or the negative part I observe half as much at the output.
With a square positive and negative and phase shifted by 180 degrees the max was reached.

What is curious a new about your experience in the square positive nad negative in phase and it works so it's a new effect that's developed, that's for sure.

You have discovered a new effect.

Question; Is it a 3 coils or two coils transformer?

Jagau

Liked by

Vidura posted this 20 May 2024

Replying To: Jagau

Hey Jagau, in that experiment a ferrite with a bifilial winding in noninductive connection was used. The earthground was connected at the joined ends of the windings. The PS is a linear type and has no ground connection.

Vidura

Liked by

Admin

Fighter posted this 21 May 2024

Quoting:Vidura

The switches I used are silicon carbide mosfet from Cree.

I also highly reccommend the Cree WolfSpeed MOSFETS. You'll notice more precise and clean switching.

Every time I used them instead of regular MOSFETs the results were spectacular with very clear and visible improvements.

For example when I upgraded the switching MOSFETs for ZPM and for DSE.

It's true, they're kind of expensive, but they worth their price.

Regards,

Fighter

"If you want to find the secrets of the universe, think in terms of energy, frequency and vibration."
		Nikola Tesla

Liked by

Jagau posted this 03 June 2024

Hi all

To succeed in this experiment, the coils must not be next to each other, bifiliar wound,

but segmented one on top of each other.

I bring you the descriptions of N.Tesla in the book by G. Vassilatos

The segmentation was the key to releasing the action. Pure voltage was rising with each inch of coil surface. Tesla constantly referred to his "electrostatic induction laws", a principle which few comprehended.

Tesla Transformers are not magnetoelectric devices, they use radiant shockwaves they produce pure voltage without current.

Jagau

Liked by

Jagau posted this 22 November 2024

Update

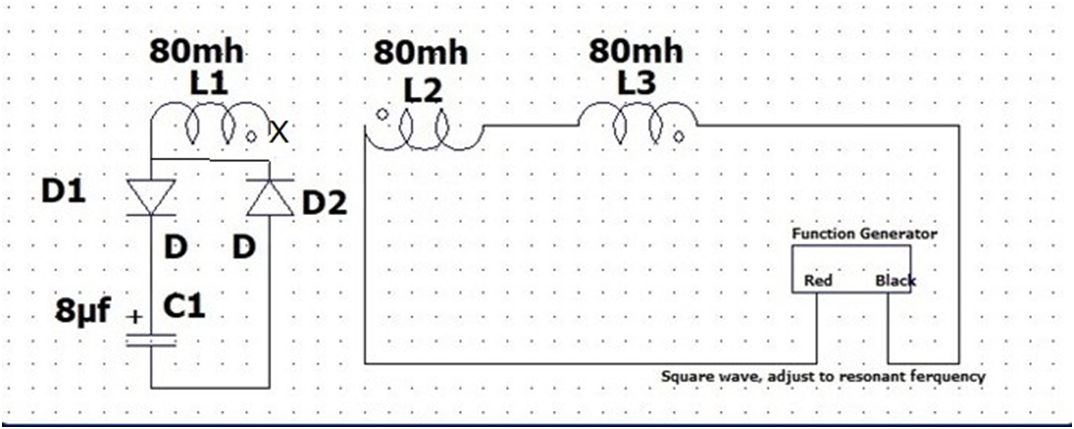

If you replace the FG with my SRO which I upgraded the NPN 2n2222 with a MPSA06,

the voltage will be X100 instead of X50 .

Note that the output coil is connected to an AV plug only on one side of the output coil. The other end is not connected.

Jagau

Liked by

AlteredUnity posted this 23 November 2024 - Last Edited 28 November 2024

Hey Jagau! I will have to try with your SRO. So far I had best results using schematic above, yet the negative of capacitor is connected back to SG(-).

I haven't quite yet got the results I wanted, but learned a lot with these circuits and plan on improving. I only tested with 2 transformer cores. This transformer in video has only 44turns on each coil, so will wind a bigger core soon to be able to get 100 turns each.......

With the low rms reading of voltage on the input, I assume the circuit impedance is matched with the generators, the scope shows 51-54ohms. And the input is still less than 225mW.

https://youtube.com/shorts/hM-l3mZLGSg?si=GrpuN3y1JG49-rxB

Liked by

Jagau posted this 23 November 2024

About 69 k hz and 393v with a FG, Excellent Alteredunity.
For the SRO when you have time, by changing the NPN we get X100

With only two small rechargeable battery of 1.2 v or about 200v
nice work.

Notice that it is not the transformer effect here it is electrostatic energy from the environment obtained in open circuit with the AV plug.

Jagau

Liked by

Jagau posted this 24 November 2024

Hello Alteredunity

if you place another AV plug just between the two coils pulsed in phase opposition, you will have the same voltage as on the third coil and this in addition.

Jagau

Liked by

Jagau posted this 25 November 2024

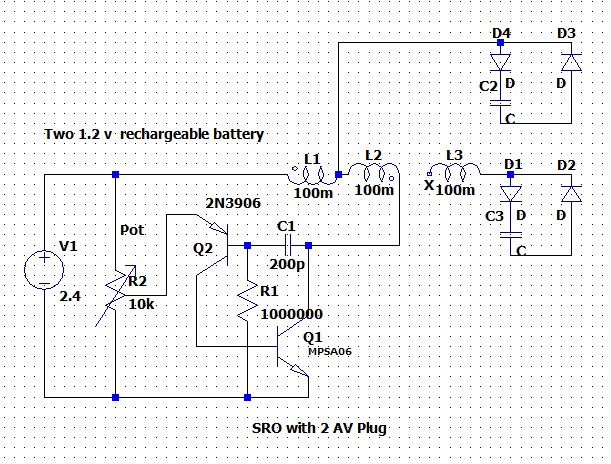

The circuit with two AV plug, This circuit automatically adjusts to the resonant frequency of the two coils without any intervention on your part.

With this double AV plug you get double voltage freely in this open system.

If you short the AV plug it does not affect the input since it is an open system, Atti has done well.

With 2.4 volts your capacitor will charge about X100

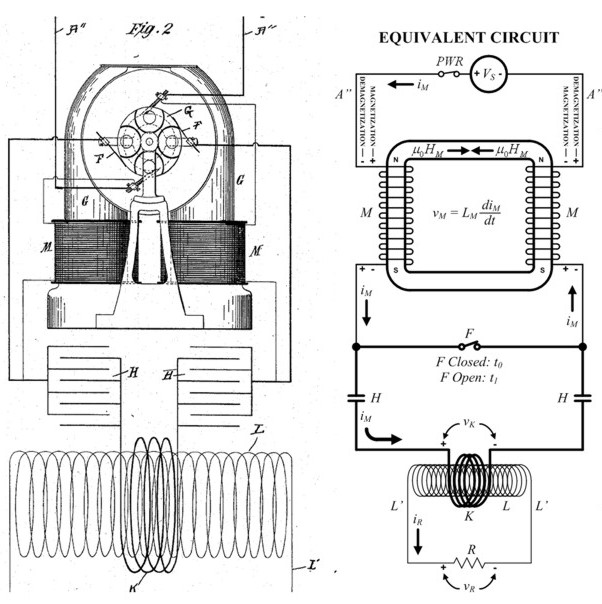

Well this is a mini circuit like the one discovered by N. Tesla. I pulse it to the extremities, N.T. pulsed them to the center.

It's just that in N.T. time diodes didn't exist.

What he does not say in his patent is that the switch does two distinct things: at the very moment of closing, it supplies the two coils and shorts the two capacitors which now form a series circuit and in a second time when the switch opens, the effect sought by N. Tesla in the very low impedance output circuit.

You can still see some great experiences to be had with this very simple circuit.

Jagau

Liked by

Atti posted this 25 November 2024

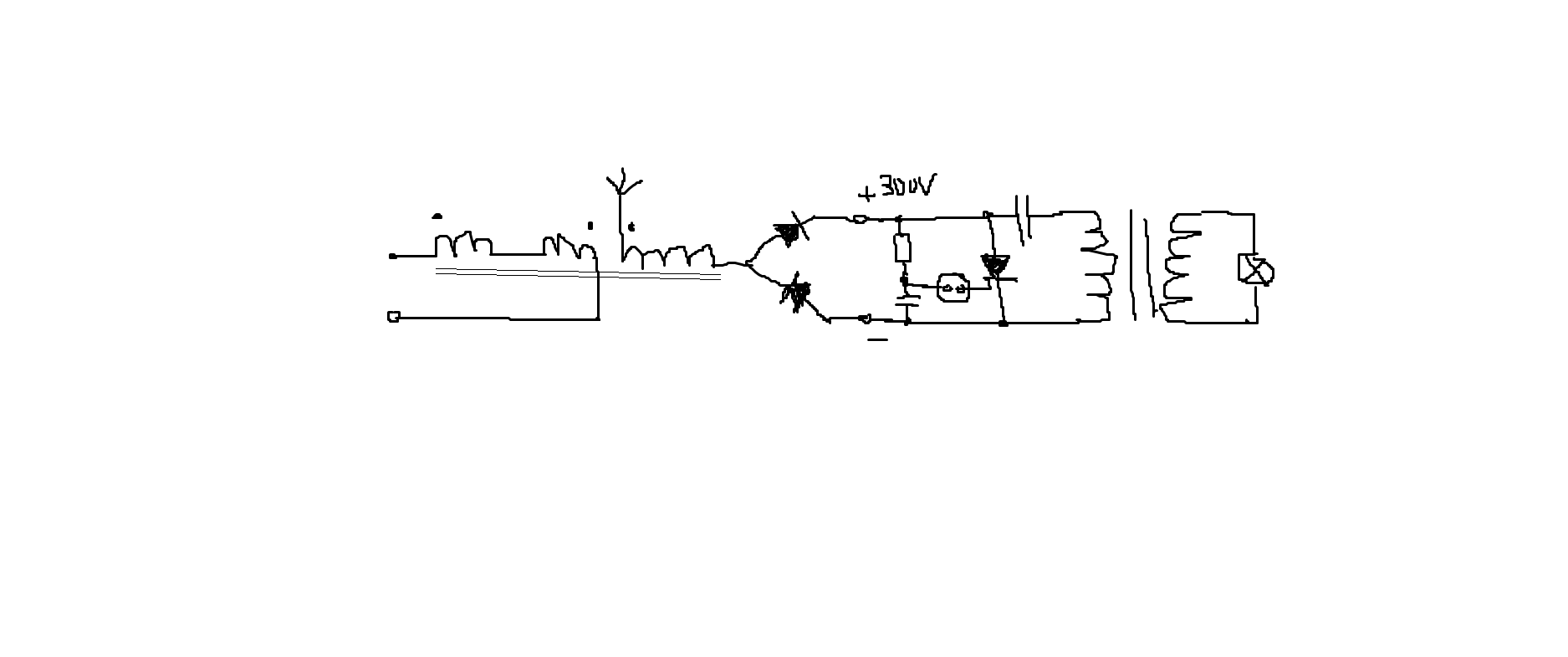

Thinking more about the theories and Jagau's implementation, I will try the following exercise. If time permits. The components may vary.

Liked by
