In order to not interfere with Jagau's experiments with Dr. Stiffler's SEC technology which have many things in common with what Don Smith named "The Don Smith Effect" I'm starting in parallel with Jagau my own experiments with Don Smith's tech.
If this experiment is successful maybe we can unify the technologies these two great teachers demonstrated to us.
So below is my first post in this related thread here.
Fighter
"If you want to find the secrets of the universe, think in terms of
energy, frequency and
vibration."
This would require the modification of the switching module of the device, I'll give it a try with C2M0160120D-ND and if it has the same behavior then I'll proceed with the modification of the switching module according to your recommendation.
Regards,
Fighter
"If you want to find the secrets of the universe, think in terms of
energy, frequency and
vibration."
Jagau
posted this
08 December 2023
- Last Edited 08 December 2023
HY Fighter

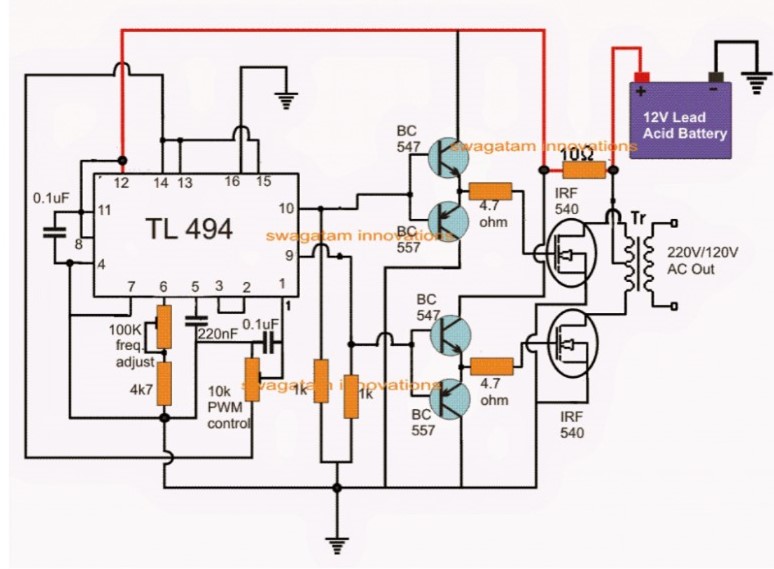

To give you an idea of construction here is a complete plan of the TL494 oscillator with two push-pull outputs which controls two N Mosfet , one after the other. You can see the Totem Pole configuration at the output with an NPN and a PNP which activates each of the two N Mosfets with 4.7 ohms resistors at gate.
The totem pole configuration allows the activation voltage, On time, of the mosfet gate to be quickly increased to a higher voltage (NPN), which prevents the mosfet from heating up. In addition, the other PNP transistor discharges the gate, OFF time, very quickly.
I built this oscillator circuit that use frequently, design by Swagatam Ing. and it works wonderfully.
I experimented a bit with the device in order to learn about its behavior.
As we all know Don Smith told us the higher the frequency the higher the efficiency.
So I wanted to see if I can increase the frequency while maintaining the coil at his resonant frequency and have the same Vpp and the ringing effect.
As a note about resonant frequency we have a very simple method to verify it (reference here):
Seems I can go higher with resonant frequency just by increasing the duty-cycle.
This is the video with the device working at 11 KHz resonant frequency with duty-cycle increased from 1% to 2% and verification of the fact that the coil is still working in resonant mode:
And here is the effect of the device on the Micro-Generator:
As a note, the Micro-Generator is blinking slower than usually when the oscilloscope is turned on.
But when this device is turned on the Micro-Generator is blinking much faster than usually. The same effect I saw when turning on ZPM. I agree the effect is not as powerful, with ZPM the Micro-Generator's lights were on almost continuously, but it's showing to me that the device is setting in motion the zero-point field and I'm on the right track with this device.
What I intend to do now is to replace the current MOSFET with a Cree WolfSpeed C2M0160120D-ND and to test if there are any changes in device's behavior. The replacement shouldn't take more than a few minutes (one of the advantages of building this device with easy replaceable components).
Also I started working on the extraction module: the variable capacitors fixed on their mobile supports, wires connected to them, some tubes connected to their axis so I can rotate their axis from outside while they're placed deep inside the coil.
I'll post the updates here.
Regards,
Fighter
"If you want to find the secrets of the universe, think in terms of
energy, frequency and
vibration."
Yesterday evening I upgraded the device's MOSFET to C2M0160120D-ND.
Just by doing that the Vpp in the coil increased from the previous 500 Vpp to 730 Vpp and current on input actually decreased from the previous 67 mA to 58 mA !
It's amazing what these Cree WolfSpeed MOSFETS can do, no wonder they're expensive !

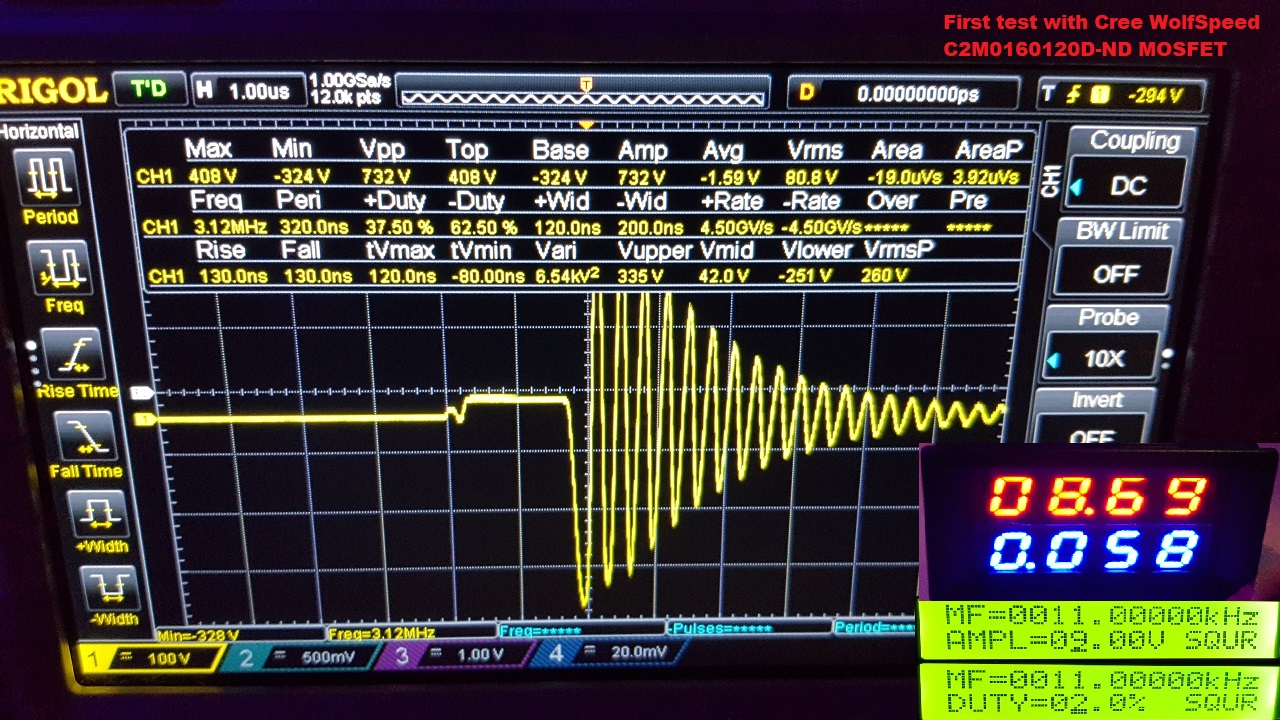

Here is the screenshot from the scope with the input parameters:
And here is the video showing the device working, checking that the coil is still working in resonant mode and also the effect of the device on the Micro-Generator:
Seeing the 732 Vpp after the test I was thinking I passed the limit of 600 V my scope can withstand and I was afraid I was at risk to damage my scope. Because I was never in the situation to have a Vpp so high, with ZPM the highest Vpp was about 230 so then the scope limits was not a concern.
I asked Jagau about this and he told me the 600 V scope limits are actually referring to Vrms not to Vpp.
Thank you Jagau for the clarification and for your help !
So I can continue to work with this new 730 Vpp range without the risk to damage my scope.
Considering the voltage booster alone is consuming 30 mA, now basically we get 730 Vpp with just 28 mA consumed from input which is putting the device in the right category to be able to experiment with the Don Smith Effect.
Now something else I would like to add as a observation: seeing the device's effect on the Micro-Generator and remembering ZPM's effect on the Micro-Generator I thinks it's safe to say that the ZPM's disturbance of the zero-point field around its core is at least a few times higher in magnitude and radius than we have with this device having 730 Vpp pulses in its coil.
It's something to keep in mind about ZPM's functionality, if this device with 730 Vpp in its coil have this effect, what happens in ZPM making it able to create disturbances in the zero-point field a few times more powerful and with bigger range ?
As I find time I will continue to work on the extraction module (the variable capacitors fixed on their mobile supports) and I'll come with updates.
Regards,
Fighter
"If you want to find the secrets of the universe, think in terms of
energy, frequency and
vibration."
Jagau asked me to try a quick energy extraction test from the device's coil using his Micro-Generator.
So here it is:
First I used my hand put on device's coil as energy collector then I took a metallic aluminum radiator and placed half of it inside device's coil as energy collector.
We can see that in order to collect that energy we don't need a coil as the standard technology is using, okay ? š
So it's obvious there is energy waiting to be collected, it can be collected by the variable capacitors too when they'll be placed inside device's coil.
You're welcome Jagau, thanks for the idea of this test ! š
Regards,
Fighter
"If you want to find the secrets of the universe, think in terms of
energy, frequency and
vibration."
Adding here more information for later references.
In one of his presentations Don Smith talked about a very special waveform present in his machines: the Trumpet Waveform.
This is one of the videos from my YouTube channel set to start where Don Smith is talking about this:
And here are the details.
The page from his book:

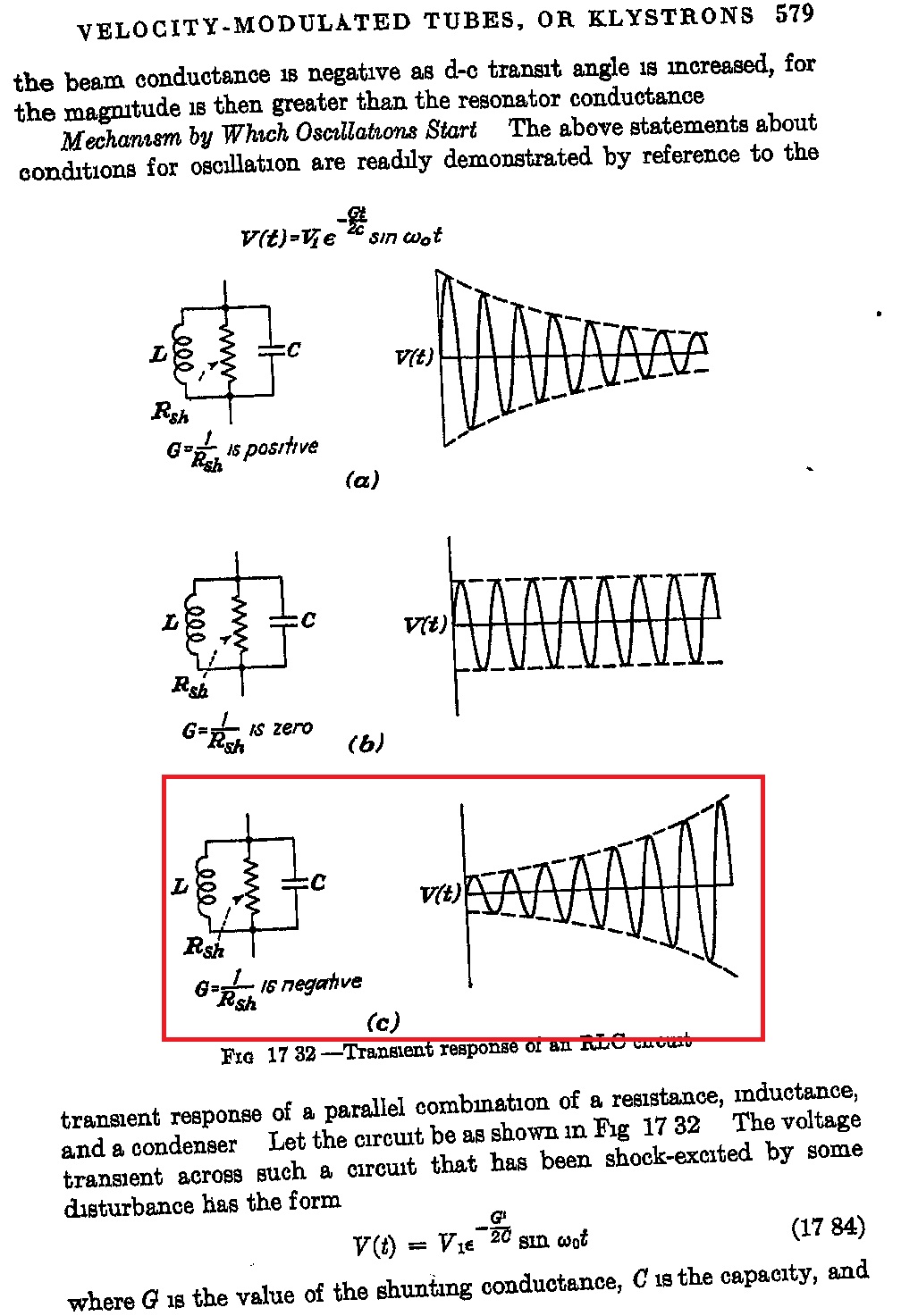

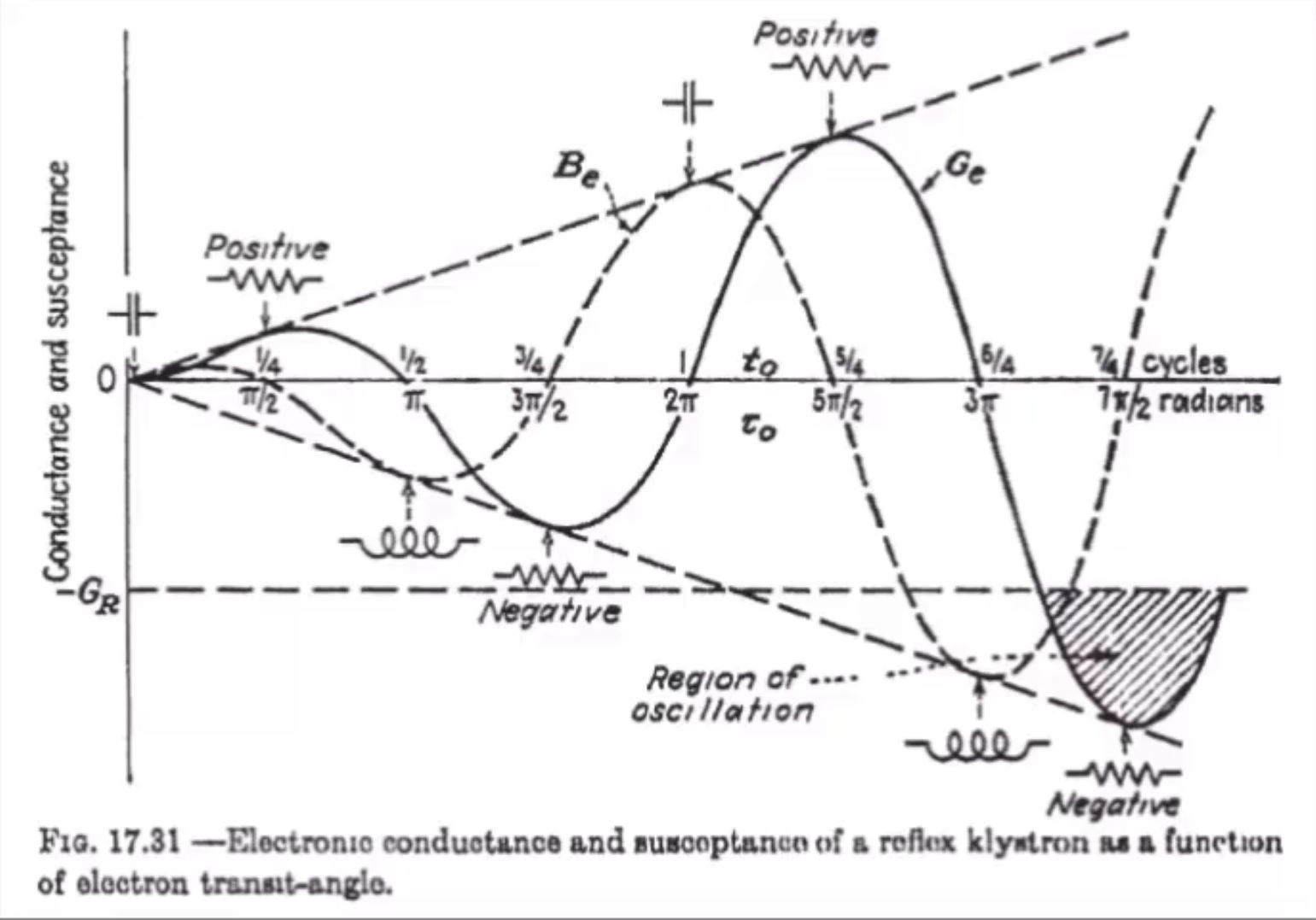

The details about the Trumpet Wave:

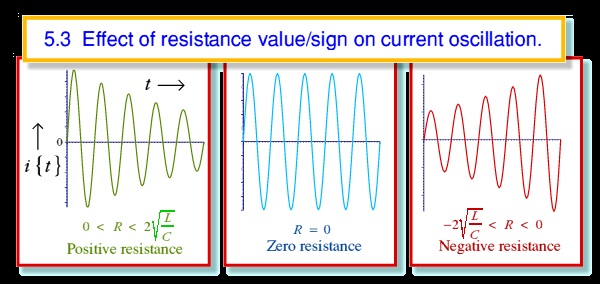

And the proof the Trumpet Wave goes into negative resistance mode, the clear sign of a overunity system:
What negative resistance means ? That means the system is using superconductivity at room temperature, that's the certain signature of a overunity system.

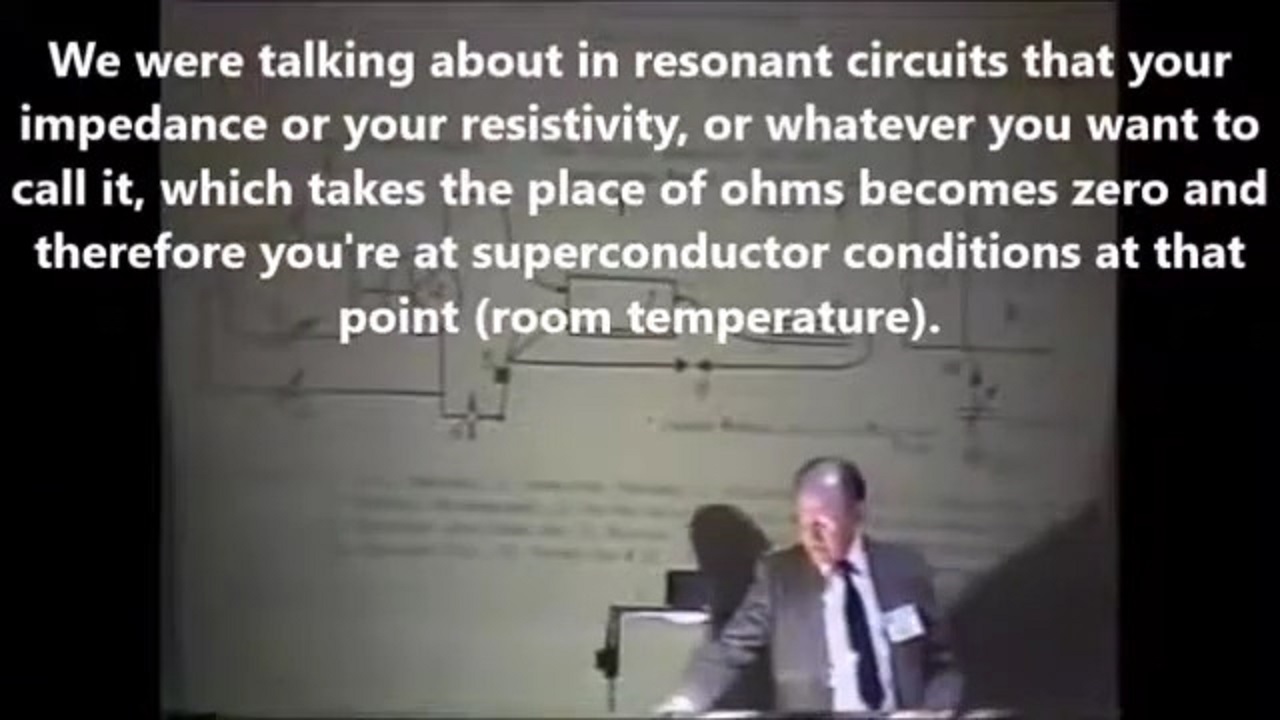

This is a screenshot from the beginning of the video above:
You could say "superconductivity at room temperature ?! superconductivity is only possible at extremely low temperatures using liquid nitrogen and all that stuff !".
Are you sure ? Don Smith's devices were shown working in public demonstrations. And as you can see above Don Smith told us and taught us how his devices work. As he says: "So if the physics books have a problem with that, so be it.".
Regards,
Fighter
"If you want to find the secrets of the universe, think in terms of
energy, frequency and
vibration."
Very interesting, I'll read it. Thank you for the permission to repost, I'll do it.
I see the thread is recent and in progress and I see you managed to get this waveform.
I also see you're using high-voltage (which currently my device doesn't use), do you think high-voltage is a mandatory requirement for reproducing Don Smith's tech ? 'Cause personally I'm trying to avoid high-voltage in my experiments because it's very risky...
I didn't knew about this forum, we send our best regards to the team working there. š
I'll follow your work there, thanks !
Regards,
Fighter
"If you want to find the secrets of the universe, think in terms of
energy, frequency and
vibration."
I guess high voltage is the must (at least few KV) but I am not sure yet. I use info from D. Smith and also from Zilano, who probably replicated D. Smith's device. Zilano in his posts recommends voltage about 4KV.
Scope shots presented there are with voltage up to 1KV. Now I am winding new excitation coil to be able manage its voltage and frequency. I will post new info after I will have some new results. But probably no sooner than after Christmas.
