This is my replication of Jagau's Micro-Generator:
The circuit for those who want to do it.
If you need advice, just ask, I'll be happy to help you.
Jagau
| "If you want to find the secrets of the universe, think in terms of energy, frequency and vibration." | ||
| Nikola Tesla | ||

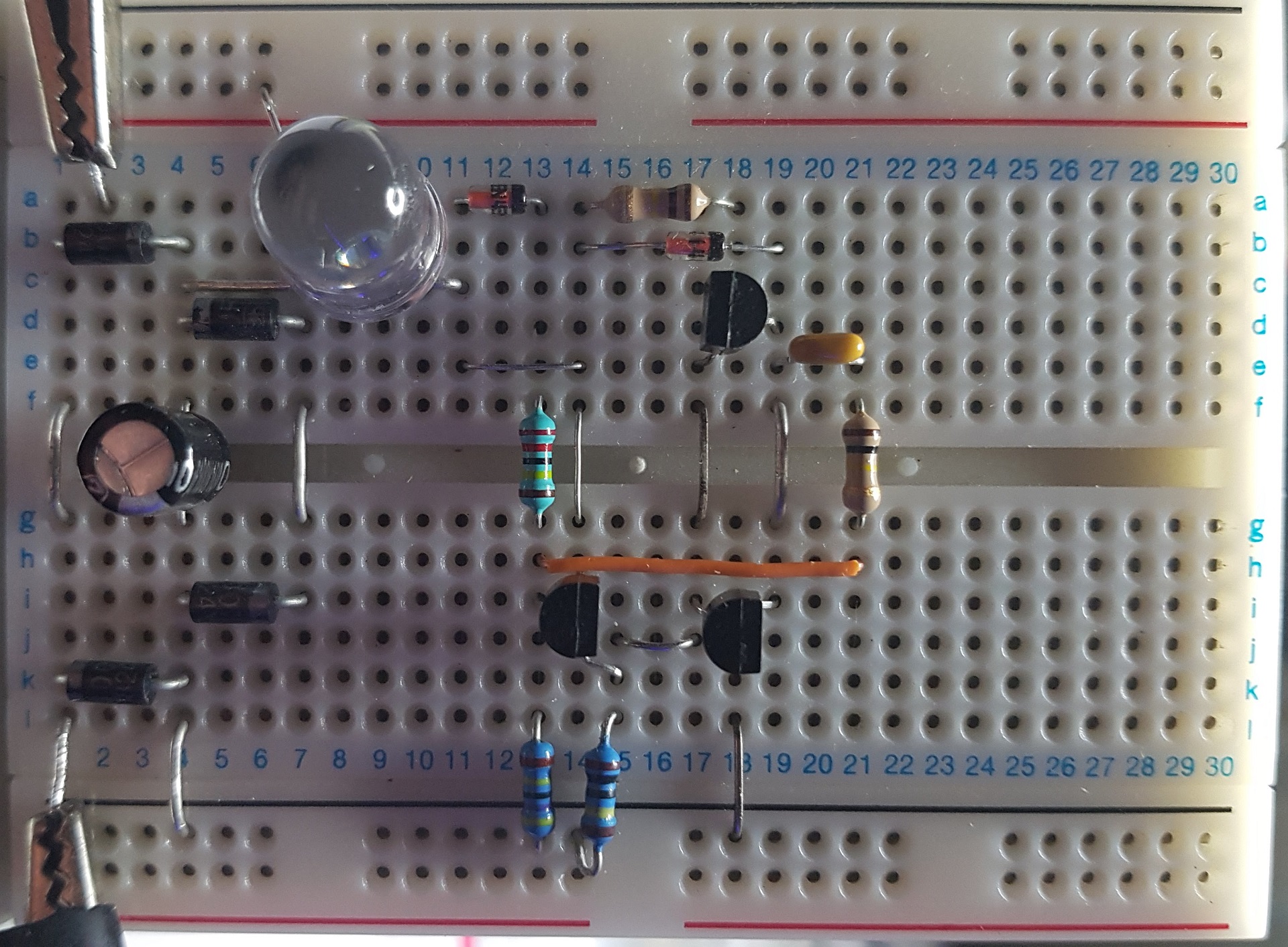

The shipment arrived and I replaced the temporary resistors in series:
Now all the components are as in the specs.
I noticed a slightly decreased frequency of the pulses which is normal.
For later references I'm posting a small video here with the current behavior:
This replication on the testing board will be the platform for future experiments.
The rest of the components will be used for building the miniaturized versions on permanent boards with soldering.
Regards,
Fighter
| "If you want to find the secrets of the universe, think in terms of energy, frequency and vibration." | ||
| Nikola Tesla | ||
Quoting:Jagau
instead of 2.2 meg and 4.7 meg you can place small adjustable pots at this resistance value and so you can experience various voltages with the circuit and various flash levels, and maybe found something new to experiment?
I ordered variable resistors.
They are difficult to find both in the same store, the only place where I found them was TME:
The 2.2M is on the way, unfortunately for the 4.7M they estimate they will receive it and send it to me within approx. 6 weeks (I preordered it).
Regards,
Fighter
| "If you want to find the secrets of the universe, think in terms of energy, frequency and vibration." | ||
| Nikola Tesla | ||
hi fighter
You can also take adjustable pots of 5 meg and even a 10 meg, whatever is available to you and adjust it to the correct ohmic value of 2.2 and 4.7 that will do the job. That's how I worked in the beginning.
I say this to help other experimenters who want to reproduce if they don't have all the resistors on hand. I also recover various electronic devices in which there are a lot of parts available like this kind of pots and others. I give a second life to these components. It is really worth recovering these components
Jagau
hello Gandalf
If you need help to finish the micro generator, don't hesitate to ask and we can help you with pleasures, or if you want to ask me by PM no problem.
Jagau
Hello Jagau
recently i tried to improve the voltage source across the capacitor
mine is 1.7 volts with reverse meter polarity
I connected the lithium batteries - checking if the key works - it works ; (with a capacitor value of 100nF)
then I added an additional 100nF capacitor (smoke came out of one of the diodes)
I don't give up
- I did not abandon further study of the microgenerator ✌
Regards
Gandalf
“All we have to decide is what to do with the time that is given us.“
If you would like, would you be so kind as to give me a little sketch of what you are saying, I will find it easier to advise you.

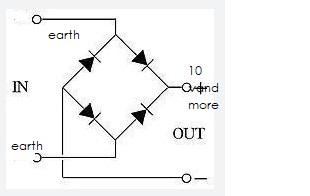

As a starting point if you take just 4 diodes connected in a bridge with no circuit, the two AC of the bridge to earth, you should have a DC at the output of the bridge of 10 volts and more. To have best resutl diode shouldbe very fast diode like UF4001, small signal diode as 1n914 do not work well.
Do you have?
Jagau
Jagau my friend
I'm going to do an experiment this Friday (I know where I made a mistake -I used mains ground N)
PS :editing this post on
“All we have to decide is what to do with the time that is given us.“
Ok my friend you are welcome,
It's only those who don't experiment who never make mistakes, I make mistakes too.
Jagau

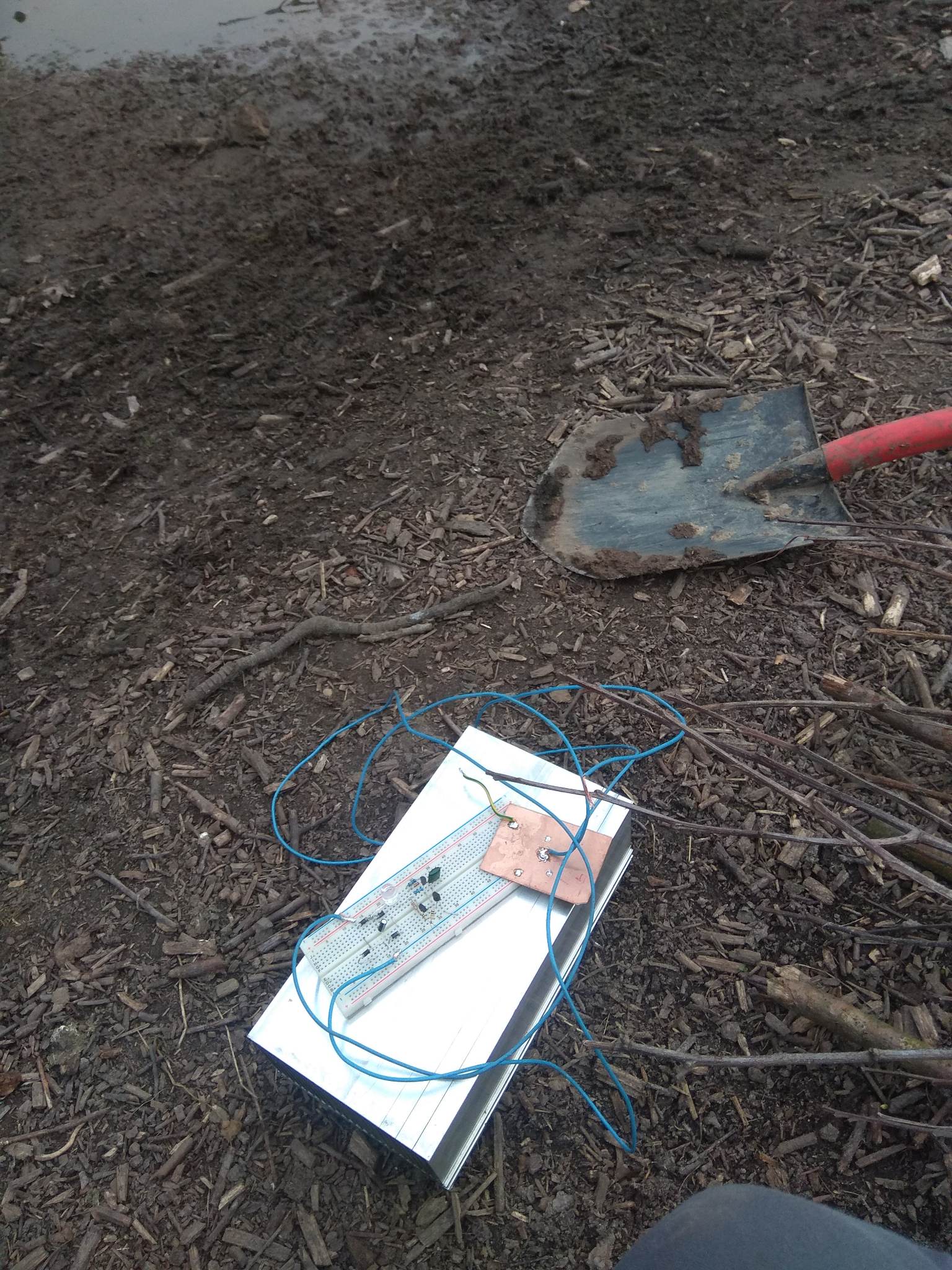

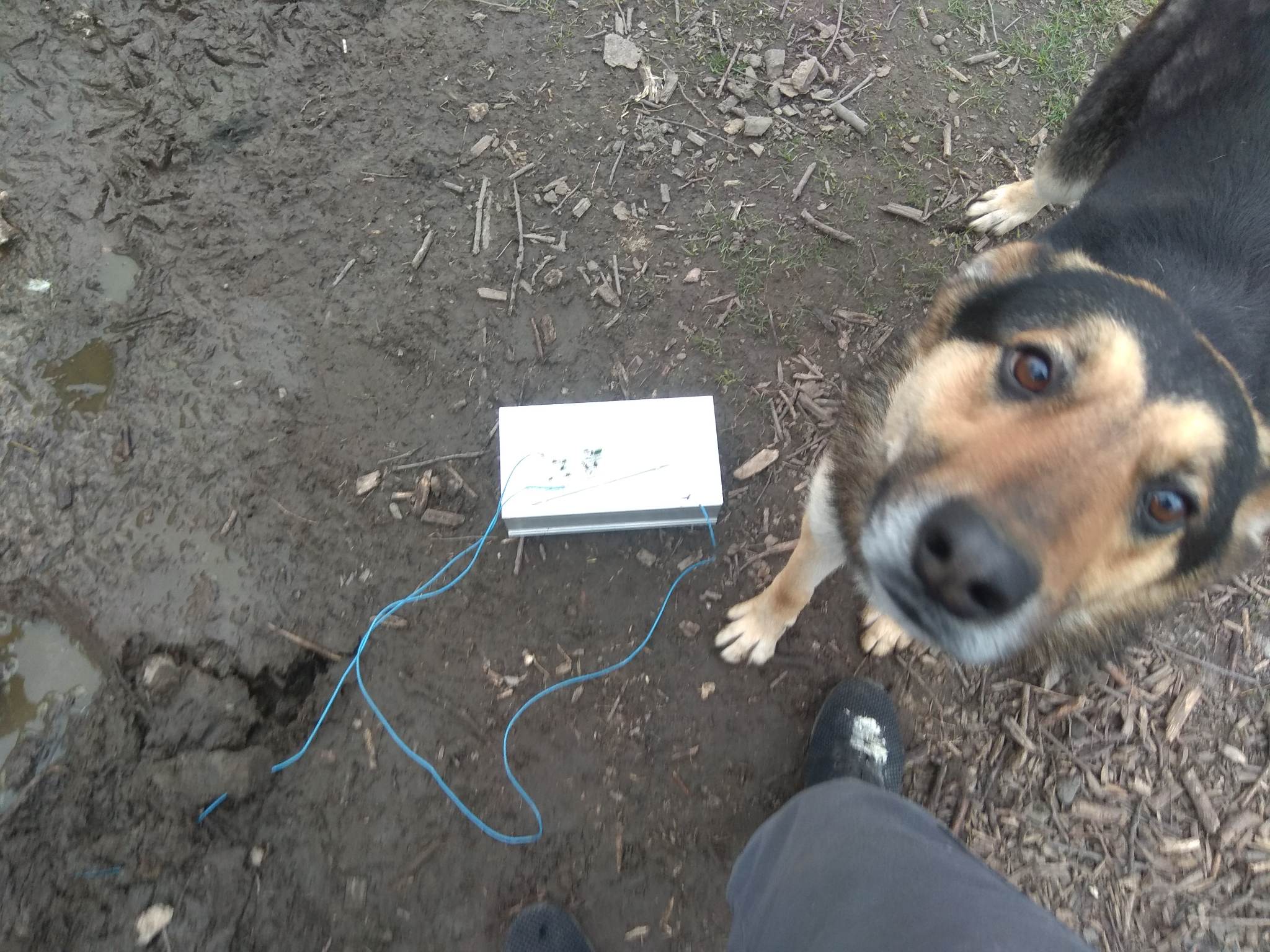

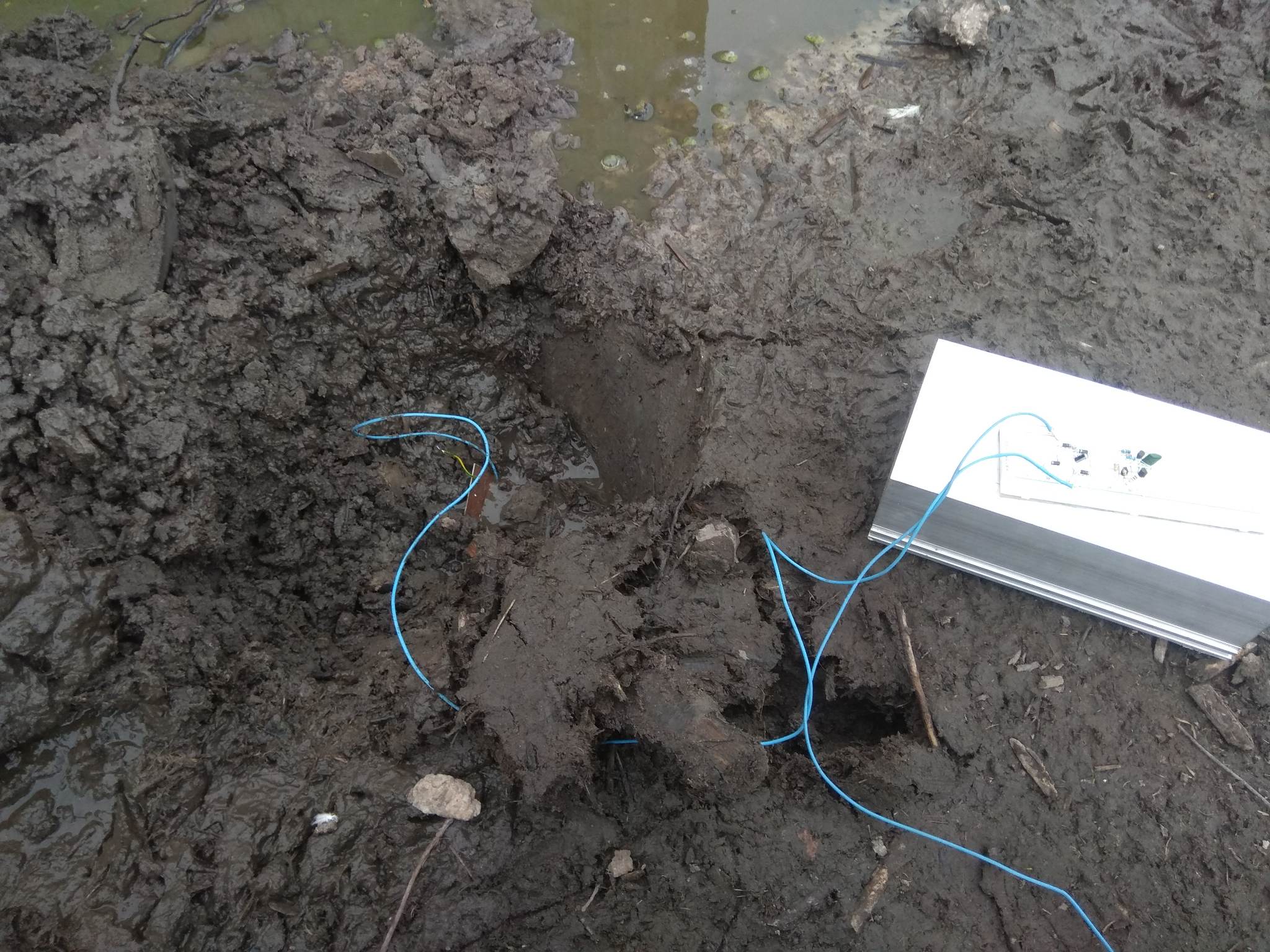

Hi all!
it works here for the last 10days. Tnx Jagau, 73.
Edit: Jagau, here is a business idea for you.
Congratulations Editor great success;
It will work for many years without stopping. Have fun with this circuit by trying to improve it.
Mine has been running for almost two and a half years now.
