Beyond Unity - Energy Gains in Adam's patent.

Jagau posted this 07 September 2024

Is there energy Gains in Adam’s patent, the great question.

I built an Adams motor using a computer HDD to simplify the assembly of the bearings and with the installation of six permanent neodymium magnets on the rotor. This is Robert Adams’ first advice in order to understand the operation and then build a bigger one.

In order to study the behavior of the motor I use two 5 milli-henry coils on each side at 180 degrees from each other with the left side winding CCW and the right CW, the coils are connected in series.

The control system will be done with an Arduino mega 2560 using a hall effect sensor S277 for detecting the position of the rotor relative to the magnets. On the hall sensor S277 that I recovered from a computer fan, only the DO output (pin 2) will be used to give the interrupt detection instruction (it is in the Arduino program) in order to activate a 6N136 optocoupler to give a pulse on the Gate of the Nmos IRF3205 which will activate the two coils in series of the motor as declared by the inventor Mr. Robert Adams.

Photo to come

Jagau

Liked by
and 1 others

Vasile posted this 4 weeks ago

Quoting:Atti

N.Tesla 142.352.

142'352? Is this a patent number? If yes, than can you post the patent?

Liked by

Jagau posted this 4 weeks ago

Hello Atti

When I built the first Adams motor, I did not pay attention to the polar surface of the magnets versus those of the coils.

After much reading in the NEXSUS magazine in which Dr. Robert Adams made all his statements, the polar surface compared to the drive coils must be 4 for the rotor magnets and 1 for the drive coils.

For the generator coils, it is the opposite, the polar surface of the generator coils must be 4 times larger than the polar surface of the rotor magnets.

We can very well visualize here in this photo one of these publications the polar surface generator, drive coils versus rotor magnet

I am redoing my coils with this new data and I am also changing my rotor magnets with Alinco ferrite magnets as recommended by Mr. Adams. Do not use magnets at the beginning, learn to understand the effects before increasing the voltageas per his recommandation.

P.S. nice presentation with your metglass video, we can clearly see the influence of loosely mounted coils.

Jagau

Liked by
and 1 others

Atti posted this 3 weeks ago

Hi Vasik and Jagau.

Vasik.

You can find it here.

https://teslauniverse.com/nikola-tesla/patents/canadian-patent-142352-art-transmitting-electrical-energy-through-natural

https://zenpeaktesla.com/

Jagau.

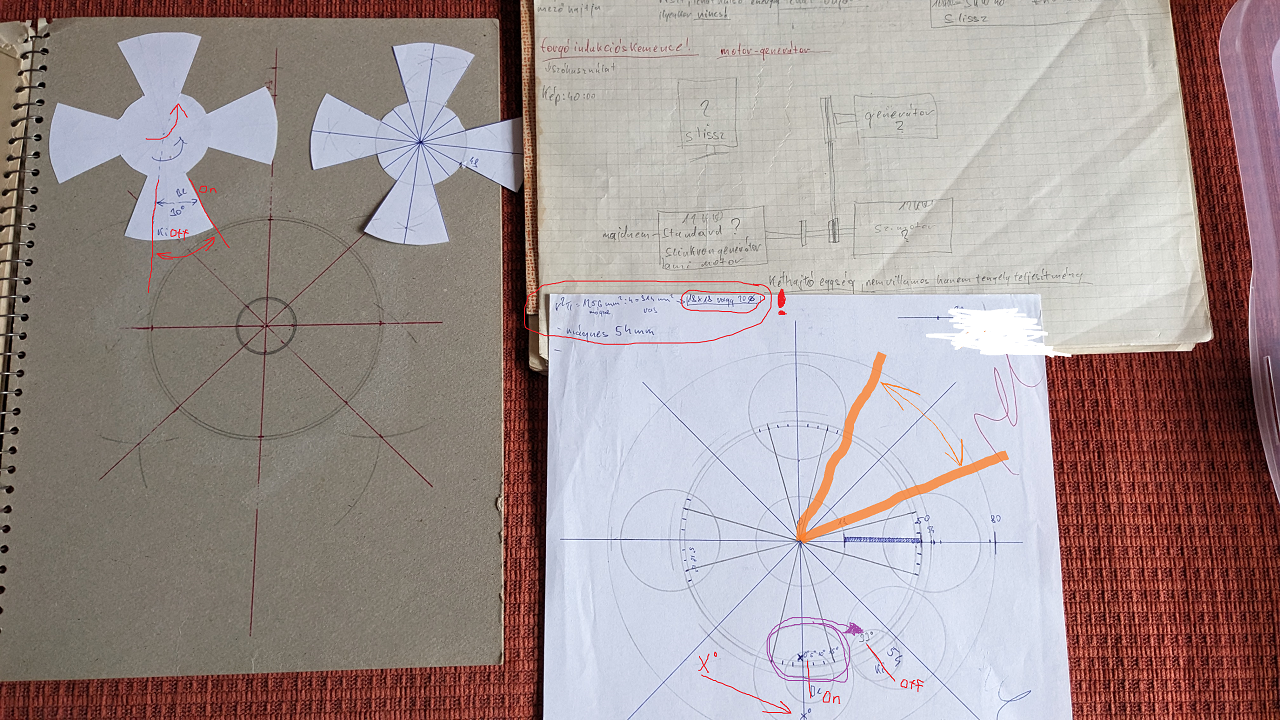

You are absolutely right about that. But I wasn't talking about that, I was talking about the distance between the two magnets.In other words, in another system (e.g. primary excitation of a transformer), the time between the two pulses. Or rather, what happens during that time.

Notice what happens in the pause between the two pulses. This is the time for the secondary change.
Also from 46:00.

This is why I am curious to study the phenomena to understand it better.

http://jnaudin.free.fr/spgen/spg_shield.htm

In my own way I am looking for correlations between different arrangements.

Atti.

Liked by

Vasile posted this 3 weeks ago

Quoting:Atti

You can find it here.

https://teslauniverse.com/nikola-tesla/patents/canadian-patent-142352-art-transmitting-electrical-energy-through-natural

Oh... you have the canadian patent. I get it now. For others interested it is US787412 equivalent.

Liked by

Jagau posted this 3 weeks ago

I haven't received the Alnico magnets yet to do the new Adams tests.
Arduino is a great hobby in the meantime.
Jagau

Liked by

Jagau posted this 3 weeks ago - Last Edited 2 weeks ago

There is only one way for the Adams engine to work on beyound unity, as its inventor says,

the Adams engine must be operated in disruptive discharge mode.

Jagau

Liked by

Jagau posted this 2 weeks ago

One reason that such a motor operates so well with these discharges is that the difference of phase between the primary and secondary currents is 90 degrees, which is generally not the case with harmonically rising and falling currents of low frequency.

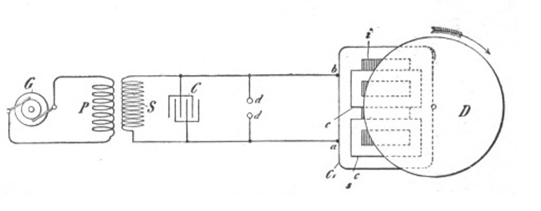

It might not be without interest to show an experiment with a simple motor of this kind, inasmuch as it is commonly thought that disruptive discharges are unsuitable for such purposes.

N,Tesla

This is how N,Tesla have done

This is what I will do with the Adams engine.

Jagau

Liked by
and 1 others

andy2 posted this 2 weeks ago

But watch out - in this patent Tesla says "metal disk". In my opition it means aluminium disk.

See videos in this channel
https://www.youtube.com/@smailbluestar/videos
about spinning by HV HF.

Andy

Liked by

Jagau posted this 2 weeks ago

Hi Andy2, thanks for you reference on axial flux motor.

You must keep in mind that the Adams motor is a switched reluctance motor, the axial flux type does not have a magnet on its disk, one cannot recover the energy received in the gap between the magnet and the coils as the Adams generator motor does. I have suggested as an example from N.Tesla a type of disruptive discharge power supply on which even a switched reluctance Adams motor can also be powered. The metal disc of the Adams engine is non-magnetic.

Update ongoing experiment;

I decreased the polar faces from 1 to 4 for the two magnetizing coils and installed two generator coils in the polar face ratio of 4 to 1, in fact the reverse of the magnetizing windings, and very good results were obtained, the consumption with the same voltage decreased by half from 1watt to half a watt. By decreasing the DTC, the supply voltage can be increased. I also noticed that the generator coils are not performing well so their placement needs to be improved.

The efficiency report is starting to get interesting and with the help of the generator coils reach near unity.

Other experiments are underway on disruptive discharge power supply of the demagnetizing coils.

Jagau

Liked by
and 1 others

Jagau posted this yesterday

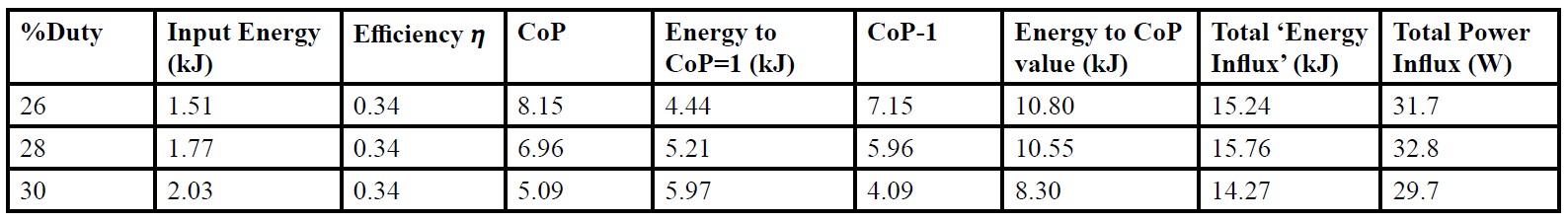

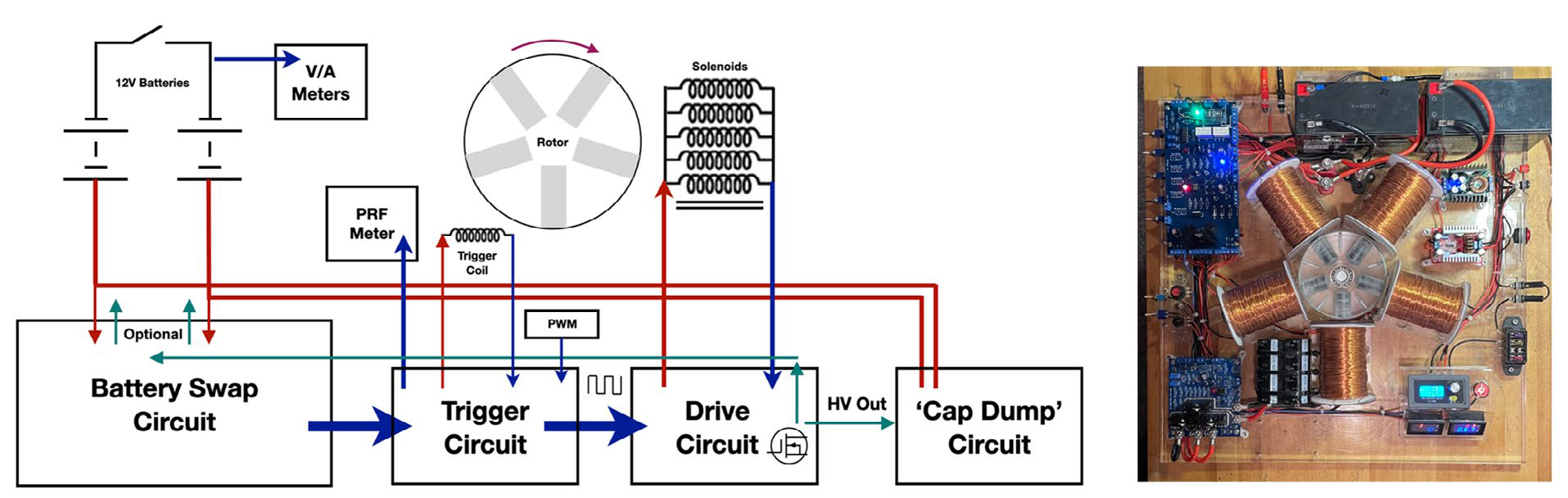

Julian Perry's managed to achieve an efficiency between 5 and 8

with an Adams type pulsed engine.

see pdf attach

Using two batteries, one for power and the other for charging.
He tried this with capacitors and it didn't give him any gain, so it takes batteries in charge and discharge that are switched every 15 minutes or so.

Jagau

Attached Files
