Beyond Unity - BUNK "OverUnity Transformer" Finally SCHEMATIC and REPLICATION available

worldcup posted this 14 March 2026

FInally after many years of long wait and arguments on OU, etc etc bunk decides to release the secrets.. ENJOY (Download video copy / materials before it vanishes from internet) ..Load up your kachers 😀

"Bunk" Kapanadze Variant Device Compilation, Real Deal, With Schematics.. (schematic at end of this video)

Download and mirror as much you guys can from this channel - https://www.youtube.com/@merlit1962/videos

watch all vids from merlit1962, shorts, Posts, Community, there is gold everywhere on his channel. He could have so easily not given us anything, but gave us everything

---

Successful Bunk Replication, within days of released schematics, MerLit1962 MIRROR

But essentially, it's a relatively small, simplified Kapanadze transformer. The secret is the use of simple aluminum layers inside the coil body, 2 split foils, for both halves of the form, the lower end foil is hit with a certain Positive pulse train, the first winding is held Negative, while the upper foil becomes INTENSELY active, and having an output on the heavy winding. Not a primary to secondary induction, but a rapid changing of voltages between the upper and lower foils, with a 50 hz interruption circuit. Rather than having to move massive currents to induce an output... he is alternating Voltages instead. Bunk has a small transformer like this, doing 4 kw off the 9v. Must see. I will try to upload more too for preservation here.

FE Seeker - IT/Coding/Soft/Cyber Security Expert/Reverse Engineering

bunk

Liked by
and 2 others

baerndorfer posted this 30 March 2026

Quoting:bunk

Although, of course, you can ask me yourself, some of your questions, those related to my
invented devices.

hello mr Bunk

i like to ask if you maybe can explain the mechanism which prevents the secondary coil from reflecting back to source dipole. i am sure this is the key to many working prototypes which are out there somewhere.

thank you and regards from austria!

B

Liked by
and 3 others

Vasile posted this 31 March 2026

Replying To: bunk

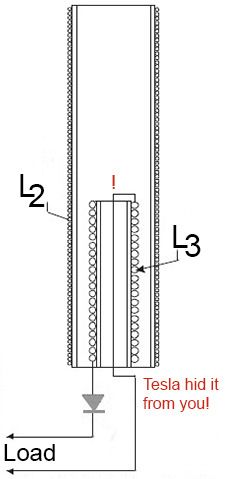

Alright, you show 2 coils. One inside the other. Because you do not mention, I am guessing L2 is the primary and L3 is the secondary. L3 has its output rectified and then led to a load. How is this special in any way compared to ordinary setups? What does it do so out of the ordinary? Please expand on it so we can more fully understand.

Thank you!

Liked by
and 1 others

Vasile posted this 31 March 2026

Quoting:bunk

It's so simple

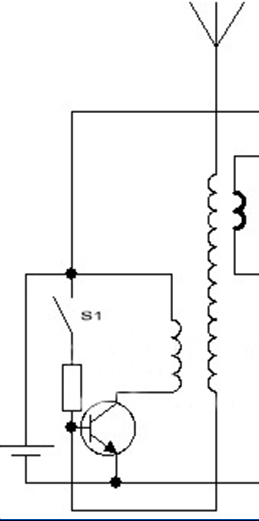

Alright, you have shown numerous schematics, let us stick with the simplest which is the one below and also the explanation of it.

So the principle in this type of device is about combining high frequency high current with low frequency high voltage (230-260v in this case), so you get the current from one side and the voltage from the other side. On the 50 Hz side you are using an AM modulator. Why are you using a modulator? What is its purpose?

Liked by
and 3 others

hackoa posted this 01 April 2026

Quoting:bunk

The video showed very clearly how the lamp glows very dull without modulation... and how bright already with modulation; the difference is quite obvious.

Probably then it will be the last: -

You delete every post or someone else?

Liked by
and 1 others

Vasile posted this 01 April 2026

Quoting:bunk

Many posts, more misunderstanding

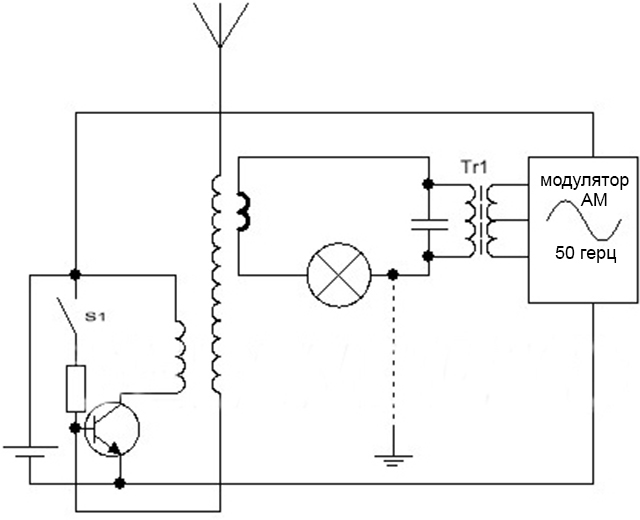

I agree with that, so let us again try to keep it simple and work on the below drawing. You are using a modulator. I am guessing 50Hz sine wave is the signal wave and you are AM modulating it. You are stepping that modulated wave up and then you are putting that wave in a circuit where a load is also present. You then tune the high frequency to the load/circuit for maximum output (I am guessing lc, lrc type resonance,etc.). For increased results you also connect a ground in the circuit. Is that all that is required?

Liked by
and 2 others

Inception posted this 01 April 2026

Three simple tests should be done before evaluating the effectiveness/COP of this device:

1) Test the 50Hz loop of the circuit, without the left two coils connected.

2) Test the high frequency loop, without connecting the 50HZ oscillator to the transformer.

3) Test the complete circuit.

For all three tests: Note the brightness of the bulb, and the amount of current drawn from the battery.

From this point, the synergy, if any, can be evaluated/improved.

((Inception)) "You do not know anything until you have practiced." - Richard Feynman

Liked by

Inception posted this 01 April 2026

The technique of High Frequency Bias is used in magnetic tape recording.

"The high-frequency signal (usually between 40 kHz and 150 kHz) constantly "stirs" or oscillates the magnetic domains. This keeps them in a state of flux so they can respond instantly and accurately to the actual audio signal." - ChatGPT

A recording bias-signal "mixture" is different than audio modulation (AM), which would have an overall envelope effect. With mixing, the high frequency signal rides the lower frequency signal.

However, in the case of this novel circuit, the mixture may have a unique affect on the magnetic field(s), and vary the saturation level(s) of the inductive medium.

Q's:

Is it stiring up the aetheric source of energy, making it more available for capture?

Is it activating and mobilizing the electrons in the circuit components?

Is it creating an active channel/pipeline for greater transmission ... excitation ... collection?

Or, is this a distractive means to obfuscate measurements, making it difficult to ascertain realistic values? ... therefore, creating a strawman for endless tinkering, with no suitable endgame results.

((Inception)) "You do not know anything until you have practiced." - Richard Feynman

Liked by
and 1 others

Inception posted this 01 April 2026

In any case, this circuit is very intriguing, and I thank bunk for submitting it for consideration and replication.

I am, again, traveling 600km to location B to finish that project, having completed many repairs at location A and unpacking items for the lab here. The large inverters were unloaded and stored somewhat safely.

((Inception)) "You do not know anything until you have practiced." - Richard Feynman

Liked by

Jagau posted this 02 April 2026

This circuit is so simple and basic to make.

I've already shown him how to do it in another thread. Kacher Brovina / slayer exciter.

Do it this way and you'll understand!, Experiment, it's the only way to understand.

Jagau

What we consider to be empty space is merely a manifestation of unawakened matter. N.T.

Liked by
and 3 others

Vasile posted this 02 April 2026

Quoting:bunk

you were also shown a video demonstrating how it all works

I think you are referring to this video, which for some reason you have deleted, but I am going to post it here:

Any theories are useless while your hands rest!

Of course, but before building something you must know at least in broad terms what you are building, that is why I am asking questions.
