BUNK "OverUnity Transformer" Finally SCHEMATIC and REPLICATION available

  • 21K Views
  • Last Post 02 May 2026
worldcup posted this 14 March 2026

FInally after many years of long wait and arguments on OU, etc etc bunk decides to release the secrets.. ENJOY (Download video copy / materials before it vanishes from internet) ..Load up your kachers 😀

"Bunk" Kapanadze Variant Device Compilation, Real Deal, With Schematics.. (schematic at end of this video)





Download and mirror as much you guys can from this channel - https://www.youtube.com/@merlit1962/videos

watch all vids from merlit1962, shorts, Posts, Community, there is gold everywhere on his channel. He could have so easily not given us anything, but gave us everything



---

Successful Bunk Replication, within days of released schematics, MerLit1962 MIRROR

But essentially, it's a relatively small, simplified Kapanadze transformer. The secret is the use of simple aluminum layers inside the coil body, 2 split foils, for both halves of the form, the lower end foil is hit with a certain Positive pulse train, the first winding is held Negative, while the upper foil becomes INTENSELY active, and having an output on the heavy winding. Not a primary to secondary induction, but a rapid changing of voltages between the upper and lower foils, with a 50 hz interruption circuit. Rather than having to move massive currents to induce an output... he is alternating Voltages instead. Bunk has a small transformer like this, doing 4 kw off the 9v. Must see. I will try to upload more too for preservation here.

FE Seeker - IT/Coding/Soft/Cyber Security Expert/Reverse Engineering

Kdkinen kurtsvids posted this 05 April 2026

Replying To: bunk

Well they, and we all here definitely look to your work as most superior, and worth all efforts to achieve.

evostars posted this 05 April 2026

Thank you Bunk for sharing these inspiring devices with us!

hackoa posted this 05 April 2026

I have music Tesla from aliexpress and will try to use it because have AM modulation. The coil is with two pieces aluminum foil as per drawings. I dont understand why, but i see blink of the LED when i interupt the spark gap. With direct connection no lights. Also input is 50 Hz from phone signal generator, but no matter if i use the input nothing change. I tryed also slovakian scheme with extra coil on top of the Tesla coil. But because I`m not an electritian i lack a lot of knowledge about what i done Sorry about that. My experiments keep going. I`m open for recommendations what to improve if possible with this small Tesla. I also have and bigger Tesla coil katcher.

Getza posted this 05 April 2026

IT'S RIGHT THERE IN FRONT OF YOUR EYES! John BEDINI

ScientificVoyager posted this 05 April 2026

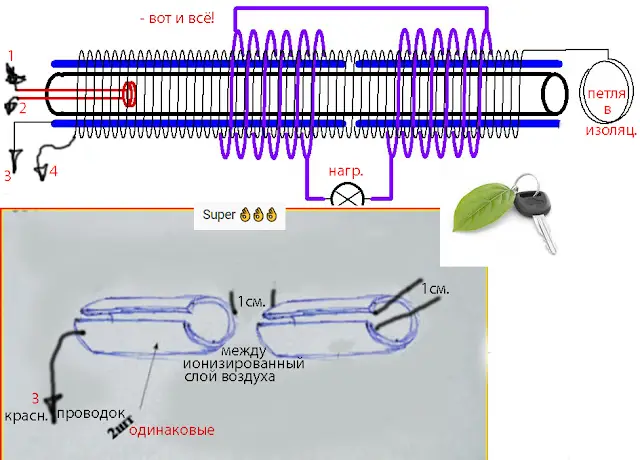

Good morning, Mr Bunk. First of all, I’d like to thank you for sharing your work, as it’s very interesting. Whilst waiting for parts for my own project, which I’m also writing about on this forum, I decided to take a look at what’s been presented here. I have a Tesla coil with amplitude modulation, and I’ve also built a coil based on this diagram.

Connections 1 and 2 are the Tesla coil inductor. I’m not sure about connections 3 and 4.
I assume connection 4 is the ground for the Tesla coil circuit, but what about connection 3 (aluminium foil) – where should I connect it? To the drain output of the Tesla coil’s MOSFET transistor?

The future belongs to those who can imagine it. N.Tesla

hackoa posted this 05 April 2026

Brown cable is connected to ground of the building. Consumation is droping when connected to the ground. The lamp is 115V 6W.

hackoa posted this 05 April 2026

Quoting:bunk

# 1 Replication Success

How to make it without ground?

ScientificVoyager posted this 05 April 2026

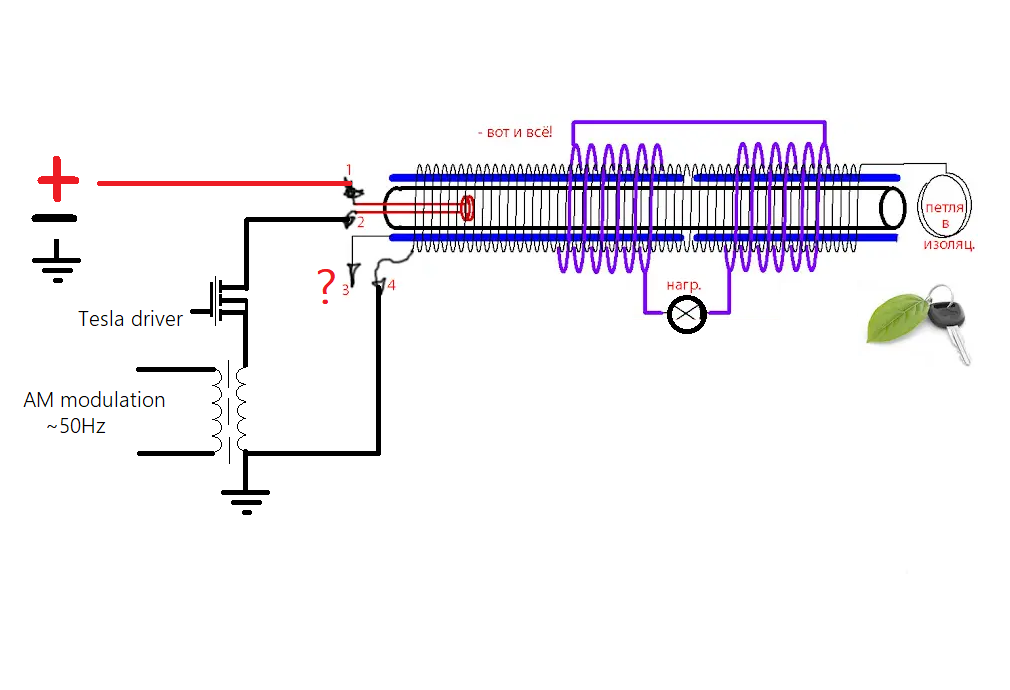

In my configuration, the connections look like this

In my setup, the connections look as shown in the diagram. I don’t think terminal 3 should be connected to earth, because – as can be seen in various videos – the device works without it. Where should terminal 3 be connected?

The future belongs to those who can imagine it. N.Tesla

ScientificVoyager posted this 05 April 2026

Quoting:hackoa

Brown cable is connected to ground of the building. Consumation is droping when connected to the ground. The lamp is 115V 6W.

Hi, are you using AM modulation in this experiment?

The future belongs to those who can imagine it. N.Tesla

ScientificVoyager posted this 05 April 2026

Quoting:bunk

bunk # 1 Replication 😎Success: -

and 😜

bunk # 2 Replication  ðŸ˜ŽSuccess: -

Thank you for the files; I’ll have a look at them.

The future belongs to those who can imagine it. N.Tesla
